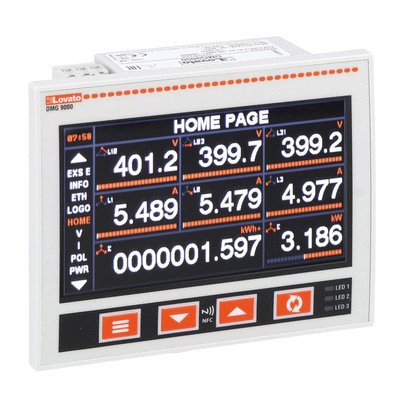

Lovato DMG9000 - Panel mount Power Analyzer, widescreen LCD, 100-240AC. Expandable, Ethernet, RS-485, Easy Branch
The Lovato DMG9000 is a product. -

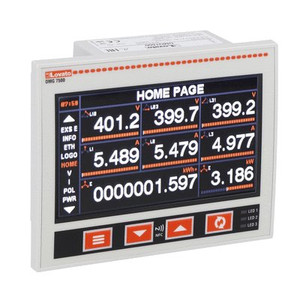

DMG Series Power Analysers
The DMG series power analysers offer high-accuracy electrical monitoring with a large 4.3" widescreen colour LCD for clear and intuitive viewing. Designed for flush mounting (cut-out 92 x 92 mm), these units feature programmable LEDs for status indication, NFC or optical port configuration, and built-in PLC logic for simple automation. Select models include RS485 or Ethernet ports, and all are expandable with up to three modules for extra inputs, outputs, or communications.
These analysers measure frequency, voltage, power (active, reactive, apparent), power factor, current, harmonics (up to the 63rd order), max demand, and energy values, with advanced diagnostics such as voltage/current asymmetry, unbalance, and historical data recording. The DMG8000 and DMG9000 models add onboard data memory and a web server for remote access, report downloads, and flexible data sampling, meeting international standards for measurement accuracy and network quality.
