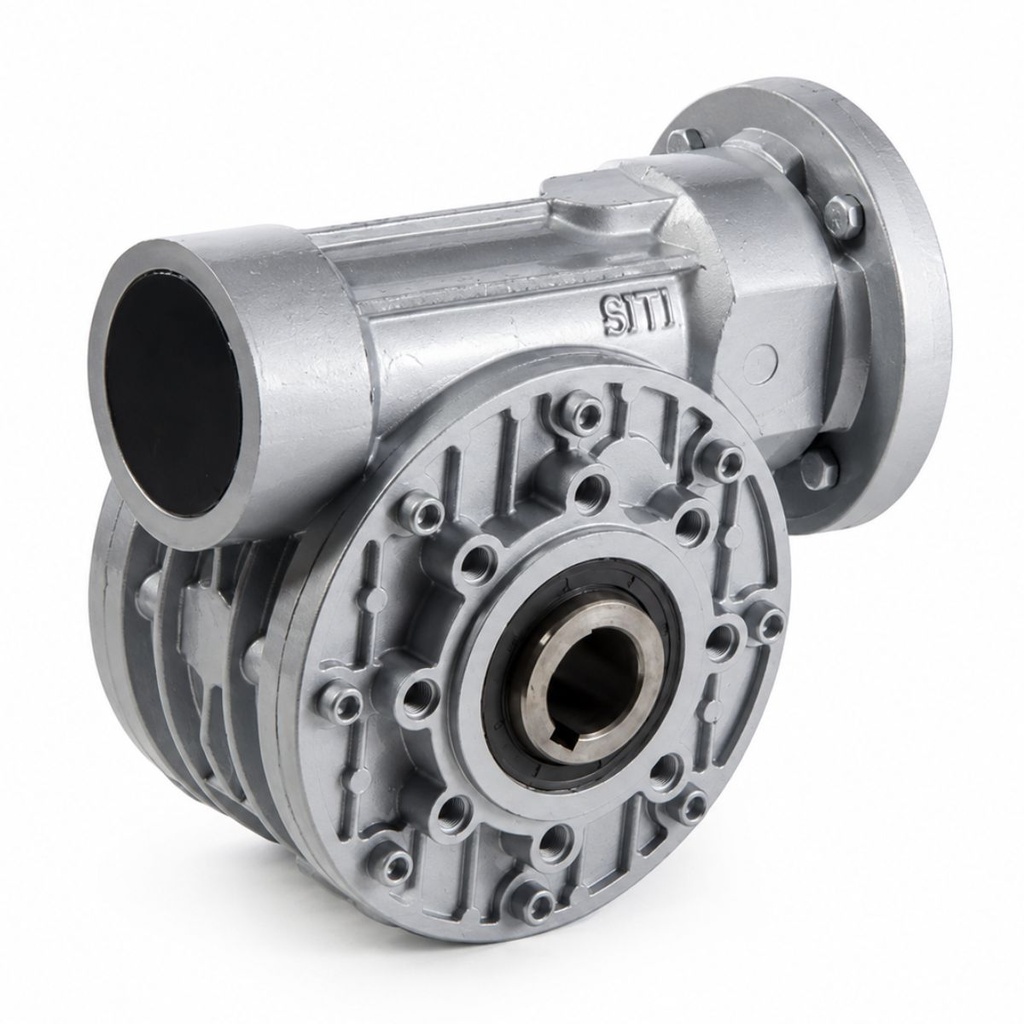

The MI80FP from SITI is a mid-size motorised worm gearbox built on an 80 mm centre-distance housing, configured with flange-mounted housing with projecting output shaft (FP variant) for general-to-heavy industrial duty.
- 10/1 ratio — low reduction balancing speed retention with moderate torque gain
- Input: PAM 24/200 flange — direct-mount for IEC 90B5 (1.5–2.2 kW)
- Flange-mounted with projecting output shaft (variant FP) — combines face-mounting with a keyed external shaft output
- Case-hardened steel worm running against a bronze worm wheel — quiet, self-lubricating, low-maintenance operation
- Low-ratio worm geometry — back-drivable under load; fit an electric brake if hold-on-stop behaviour is required
- Aluminium housing for light weight with high rigidity; suited to general-to-heavy industrial duty
- Made in Italy by SITI S.p.A.
