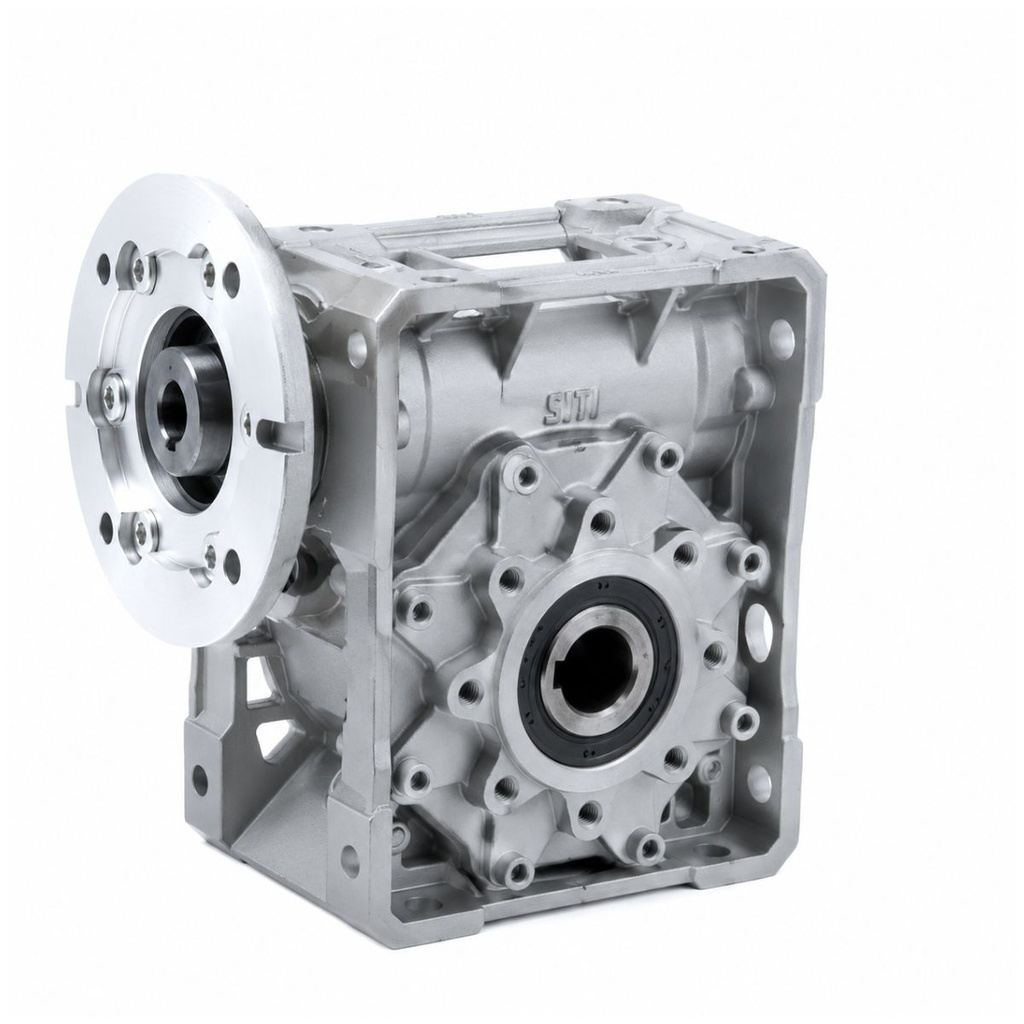

The MU75 from SITI is a mid-size motorised worm gearbox built on a 75 mm centre-distance housing with direct PAM motor flange, delivering reliable speed reduction for mid-heavy industrial duty.
- 10/1 ratio — low reduction balancing speed retention with moderate torque gain
- Input: PAM 24/140 flange — direct-mount for IEC 90B14 (1.1–1.5 kW)
- Hollow-bore output — shaft-mounts directly on the driven machine, saving installation space and cost
- Case-hardened steel worm running against a bronze worm wheel — quiet, self-lubricating, low-maintenance operation
- Low-ratio worm geometry — back-drivable under load; fit an electric brake if hold-on-stop behaviour is required
- Aluminium housing keeps weight low while preserving rigidity for mid-heavy industrial duty
- Made in Italy by SITI S.p.A.
