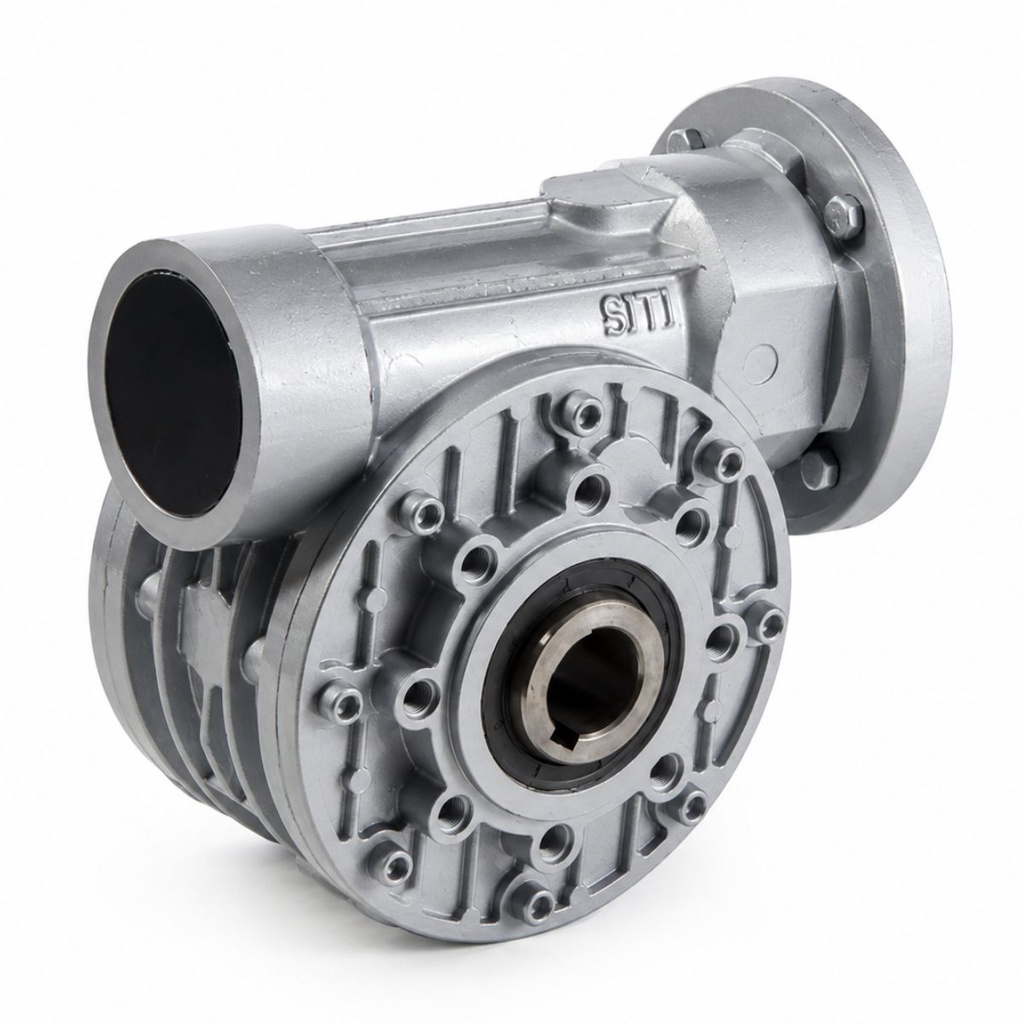

The MI30 from SITI is an ultra-compact motorised worm gearbox built on a 30 mm centre-distance housing, configured with hollow-bore output for direct shaft-mount installation for light automation and small drives.
- 25/1 ratio — mid-range reduction combining solid torque multiplication with practical output speed
- Input: PAM 11/90 flange — direct-mount for IEC 63B14 (0.12–0.18 kW)
- Hollow-bore output — shaft-mounts directly on the driven machine, saving a coupling and reducing drive-train length
- Case-hardened steel worm running against a bronze worm wheel — quiet, self-lubricating, low-maintenance operation
- Self-locking output at this ratio — strong load-holding when the motor is de-energised
- Aluminium housing for light weight with high rigidity; suited to light automation and small drives
- Made in Italy by SITI S.p.A.
