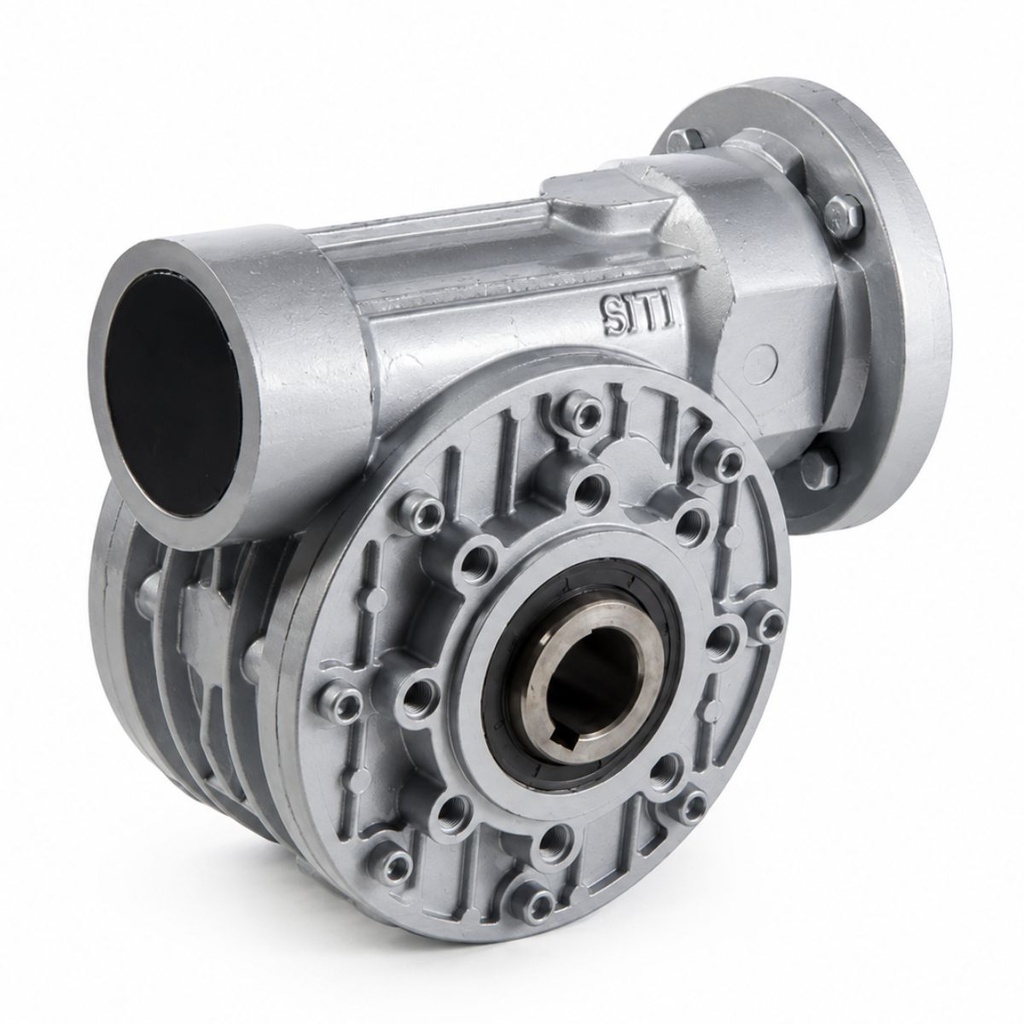

The MI30 from SITI is an ultra-compact motorised worm gearbox built on a 30 mm centre-distance housing, configured with hollow-bore output for direct shaft-mount installation for light automation and small drives.
- 10/1 ratio — low reduction balancing speed retention with moderate torque gain
- Input: PAM 11/140 flange — direct-mount for IEC 63B14 (0.12–0.18 kW)
- Hollow-bore output — shaft-mounts directly on the driven machine, saving a coupling and reducing drive-train length
- Case-hardened steel worm running against a bronze worm wheel — quiet, self-lubricating, low-maintenance operation
- Low-ratio worm geometry — back-drivable under load; fit an electric brake if hold-on-stop behaviour is required
- Aluminium housing for light weight with high rigidity; suited to light automation and small drives
- Made in Italy by SITI S.p.A.
