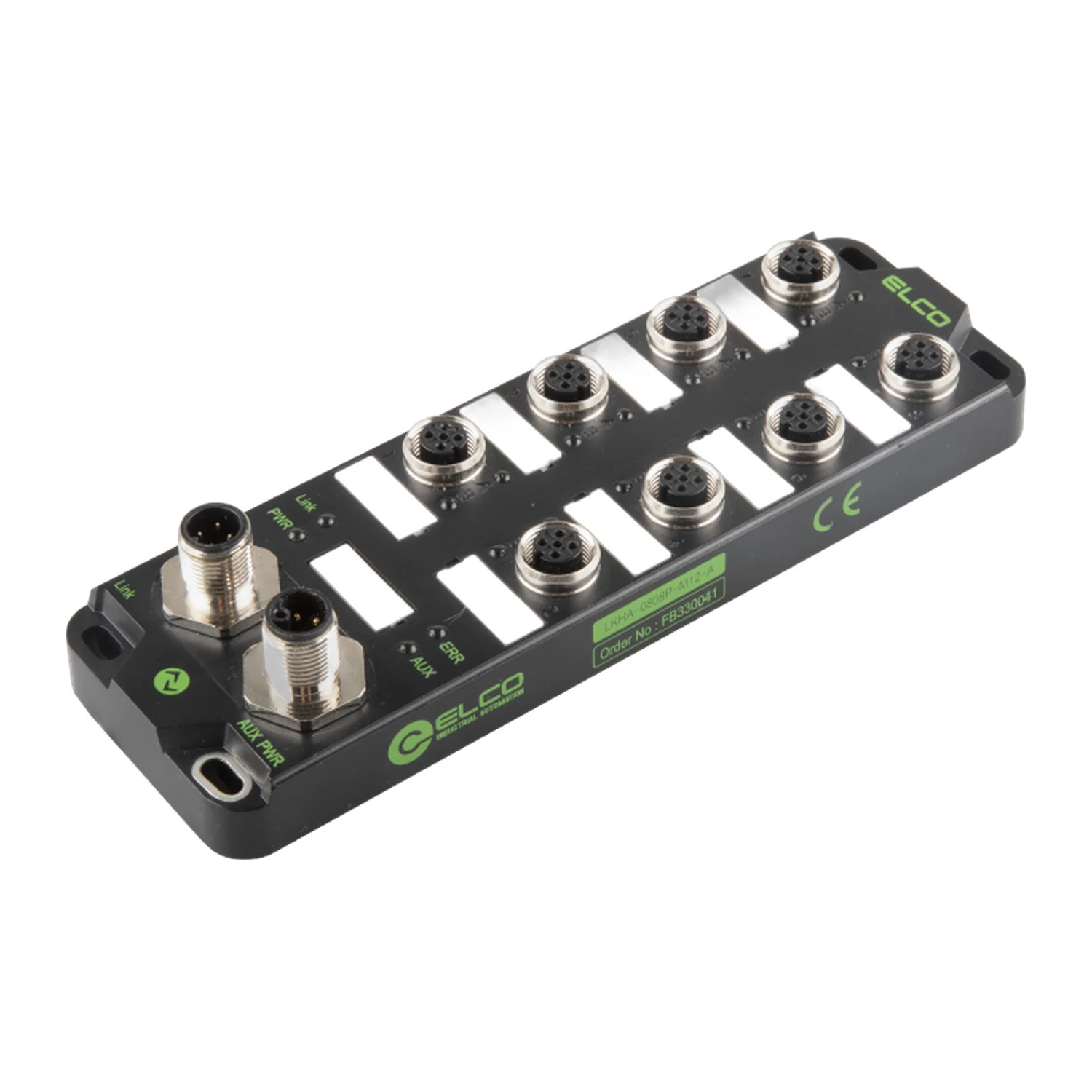

The LKHA-0016P-M12-A from Elco Automation is an IP67 Class-A IO-Link output hub that provides 16 high-current PNP outputs for valves, solenoids and other on-machine actuators.
- Eight M12 A-coded output sockets provide two PNP output channels per port
- Each output supplies up to 2A, with a 9A combined output capacity across the hub
- M12 L-coded auxiliary power keeps actuator current separate from the IO-Link communication connection
- Operates from 18–30VDC and communicates as an IO-Link V1.1.3 device over one M12 A-coded port
- LED indication covers communication, power and channel status, with short-circuit, overload and low-voltage diagnostics
- Compact 170 × 55 × 31.5mm PC/ABS housing provides IP67 protection from -25°C to +70°C
