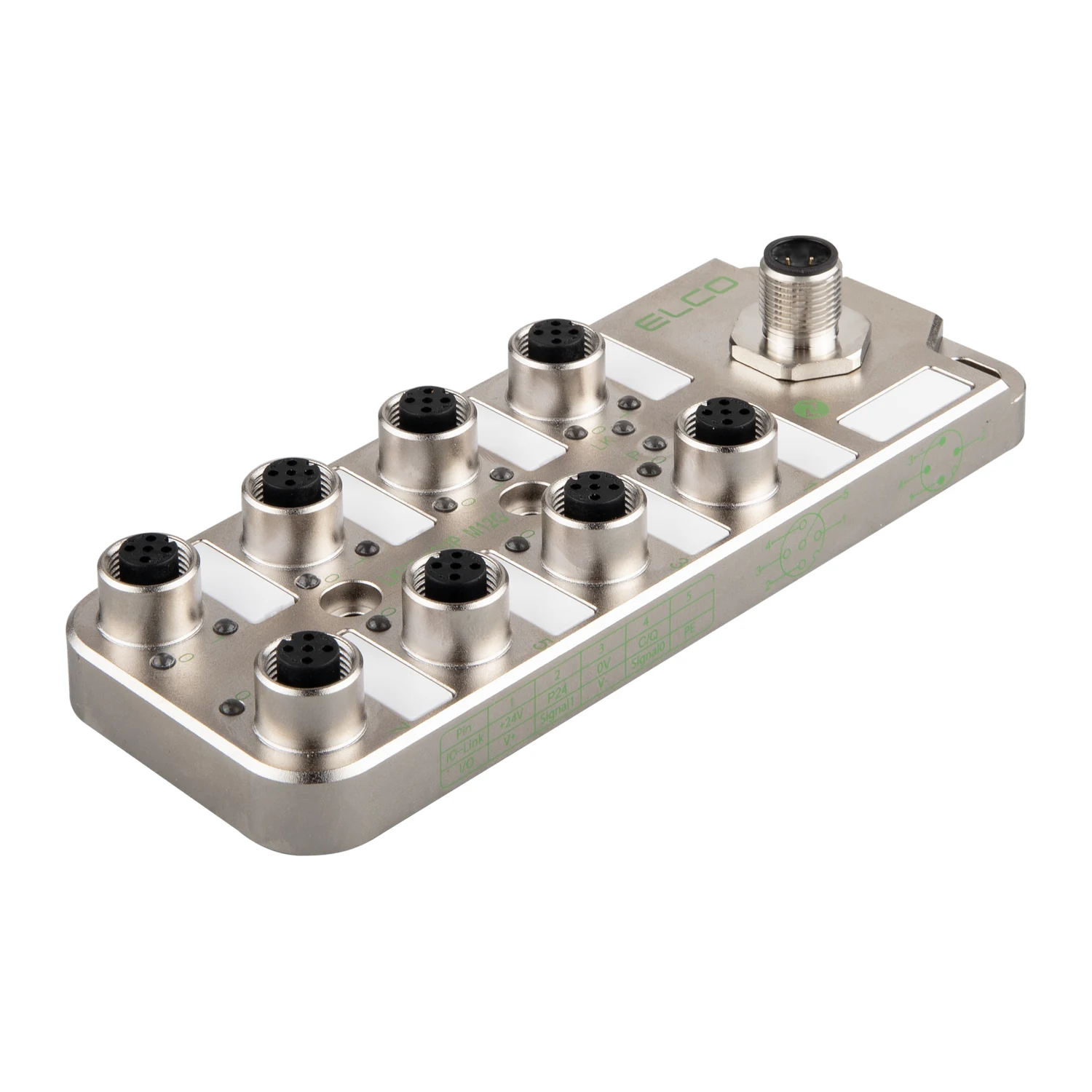

The LKHA-08UA-M12G from Elco Automation is an IP67 Class-A IO-Link analogue hub for bringing up to eight configurable analogue channels onto one IO-Link connection.
- Eight M12 A-coded signal ports can each be configured for analogue input or output
- Supports 0–20mA, 4–20mA and 0–10V signals, plus J, K, T, N and E thermocouples and PT100/PT1000 inputs
- Provides 16-bit conversion with ±0.3% accuracy and 12ms conversion for current and voltage signals
- Input sensor supply is rated to 200mA per channel, with module power delivered through the Class-A IO-Link interface
- LED indication supports communication, low-voltage, short-circuit and overload diagnostics
- Cast-zinc 145 × 55 × 27.5mm housing provides IP67 protection from -25°C to +70°C
