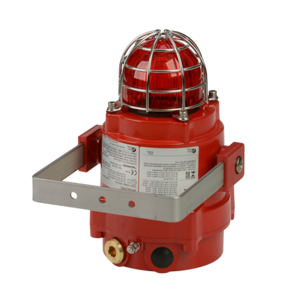

A 15 Joule Xenon beacon producing 468 candela for extended-range visual signalling in Zone 1, 2, 21 & 22 hazardous areas. Approved to IECEx, ATEX, Ex EAC and INMETRO standards with SIL 1 and SIL 2 capability. Corrosion-proof marine-grade LM6 aluminium construction.
- Marine grade, corrosion proof, LM6 aluminium enclosure
- Automatic synchronisation on multi-beacon system
- Beacons can be set to 'flip-flop' alternating mode with other units
- Xenon tubes mechanically secured against shock & vibration
- Glass lens & Stainless Steel guard
- Very large termination area
- Dual M20 cable entries – adaptors available
- Stopping plug included
- Ratchet adjustable stainless steel 'U' bracket
- Reverse polarity diode fitted
- IP66/67 ingress protection
- 468 candela effective light intensity
- UV stable PC, field replaceable, colour lens filter
Ex de build. Flameproof (Ex db) electronics compartment with a separate increased-safety (Ex eb) terminal chamber. The larger termination area and IN & OUT terminals simplify looping and field wiring. Ingress protection IP66.
