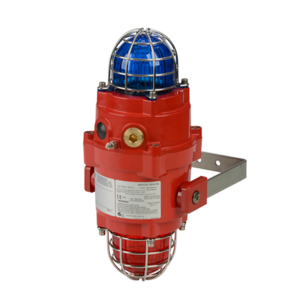

A hybrid dual beacon combining LED and 5 Joule Xenon strobe for flexible warning and status signalling in Zone 1, 2, 21 & 22 environments. Robust LM6 aluminium construction with automatic synchronisation. Both beacons can operate simultaneously from a single supply.
- Marine grade, corrosion proof, LM6 aluminium enclosure
- Automatic synchronisation on multi-beacon system
- Glass lens & Stainless Steel guard
- Very large termination area
- Dual M20 cable entries – adaptors available
- Stopping plug included
- Ratchet adjustable stainless steel 'U' bracket
- Reverse polarity diode fitted
- IP66/67 ingress protection
- 120+160 candela effective light intensity
- UV stable PC, field replaceable, colour lens filters
- LED modes: 1Hz flash (60 fpm), 1.5Hz flash (90 fpm), 2Hz flash (120 fpm), Double strike flash, Triple strike flash, High Power Steady, Low Power Steady
