BExCP3-PT Push Button Tool Reset Call Point

BExCP3-PT Push Button Tool Reset Call Point

Part No BExCP3APTSDLAB1AB1N
$ 1,304.23 $ 1,304.23 ex GST

  • Mounting / Entry
  • Entries
  • Stopping plug/adaptor
  • Bracket / Label
  • System voltage
  • Product option
  • Enclosure colour
  • Terminal Type
  • LED Indicator
  • Duty Label / Tag
  • Lift Flap
Trade account? Sign in for account pricing
Contact Us

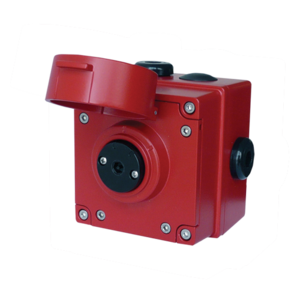

A tool-reset push-button manual call point for Zone 1, 2, 21 & 22 fire and gas alarm systems in hazardous areas. Marine-grade LM6 (A413) aluminium construction with DIN rail mounting. Includes reset key for controlled field activation and reset.

  • Alternative housing colours available to meet specific requirements
  • DIN rail mounted terminal blocks: 8 × 2.5mm²
  • Spring loaded lift flap
  • Metalised Polyester or stainless steel duty label
  • Series and/or End of Line resistors, diodes or Zener diodes
Mounting / Entry Mounting/version A — code-embedded, flat-priced; confirm (A), Mounting/version B — confirm (B), Mounting/version C — confirm (C)
Entries Entries: 3 x M20 [Default] (A), Entries: 2 x 1/2"NPT - adaptors (B), Entries: 2 x 3/4"NPT - adaptors (C), Entries: 2 x M25 - adaptors (D), Entries: 1 x 1/2"NPT - adaptor (E), Entries: 1 x 3/4"NPT - adaptor (F), Entries: 1 x M25 - adaptor (G)
Stopping plug/adaptor Stopping plug/adaptor: Brass (B), Stopping plug: Nylon (N), Stopping plug/adaptor: Nickel Plated (P), Stopping plug/adaptor: Stainless Steel (S)
Product option Product option: Standard (1), Product option: Alternative wiring option Config. 4 or 8 (B or C version only) (W)
Enclosure colour Enclosure colour: Blue (B), Enclosure colour: Black (K), Enclosure colour: Green (N), Enclosure colour: Red (R), Enclosure colour: Yellow/Black striped (S), Enclosure colour: Red/White striped (V), Enclosure colour: Yellow (Y), Enclosure colour: Magenta (M), Enclosure colour: Red/Black striped (Z)
Terminal Type DIN Rail Terminals (8 x 2.5mm) (D), Standard Terminal (6 x 4.0mm) (S)
Duty Label / Tag No Duty label, no Equip. tag (1), Duty label Stainless Steel (2), Duty label St/St + Equip. tag (3), Duty label Metalised Polyester (4), Duty label M. Poly. + Equip. tag (5), Equip. tag only (6), Special label requirement (7)
Bracket / Label Switch type: SPCO (S)
System voltage Product version: IECEx, ATEX, Ex EAC, INMETRO, PESO, SIL2 (A)
LED Indicator Default = N - not currently used (N)
Lift Flap Stainless Steel Lift flap (BG version only) (L)
