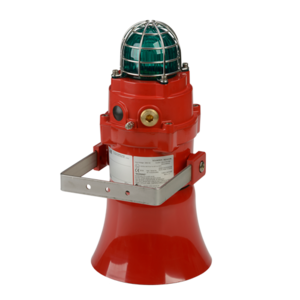

A combination unit integrating an alarm horn sounder with an LED beacon for Zone 1, 2, 21 & 22 applications. IECEx and ATEX approved with automatic synchronisation capability. Delivers both high-output audible and visual warning from a single robust LM6 aluminium device.
- Marine grade, corrosion proof, LM6 aluminium enclosure
- Ingress protection IP66/67
- Automatic synchronisation on multi-beacon systems
- Choice of five flash rates: 1Hz, 1.5Hz, 2Hz, double and triple flash
- High and low power Steady modes
- Three remotely selectable stages/channels on DC versions
- Glass lens & Stainless Steel guard
- UV stable PC field replaceable lens colour filter
- Dual M20 cable entries – adaptors available
- Stopping plug included
- Duplicate cable terminations (in & out for daisy-chain installations)
- Ratchet adjustable stainless steel 'U' bracket
- Reverse polarity diode fitted
- 160 candela effective light intensity
- 'Stage Programmable' version available with 45 tones & 4 remotely selectable stages
