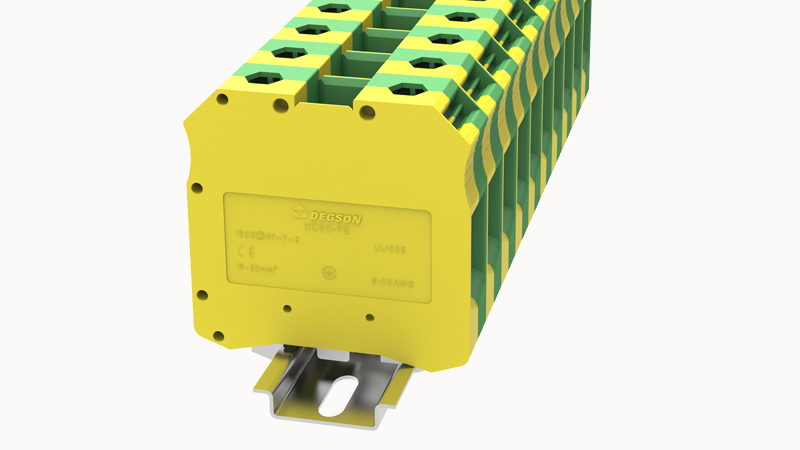

The Degson DC50-PE is a screw-connection DIN rail terminal block, rated at 150A with a conductor range of 16...50 mm². Yellow/green earth terminal. Utilises a one-piece thread system for stress-free connection and reconnection. Features a double-channel bridging design for 2-10 pole plug-in bridge connections (DFA series).
Key Features
- Universal screw connection - one-piece thread for stress-free termination and re-termination
- Double-channel bridging design accepts 2-10 pole plug-in bridge connections (DFA series)
- Compact dimensions - uniform design across series
- Available in multiple colours (grey, blue, black, red) by varying order suffix
- DIN rail mount: NS35/7.5 and NS35/15
- Rated to 150A, 16...50 mm²
- Standards: IEC60947-7-2
Applications
- Control panel and switchboard terminal wiring
- Industrial automation and PLC cabinet wiring
- Motor control centres and distribution boards
- Industrial machinery control wiring
