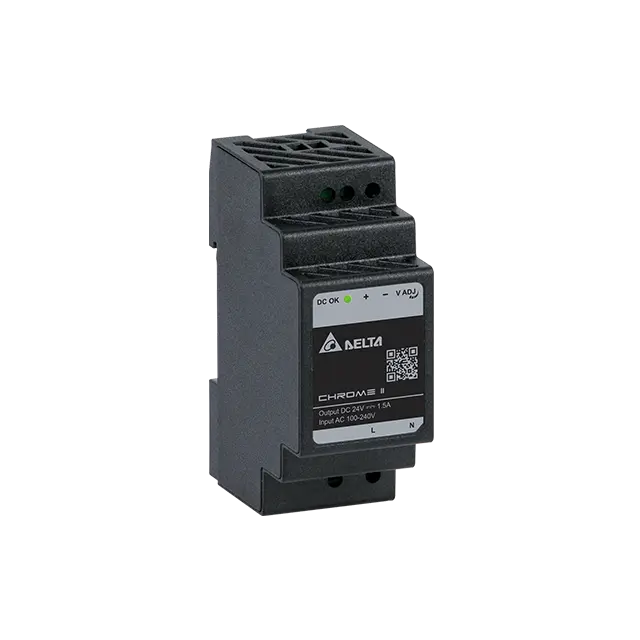

The DRC-24V030W1RZ from Delta Electronics is a 24V 36W 1.5A DIN-rail-mounted switching power supply from the CHROME II Series, designed for industrial control cabinets and machine wiring.
- Regulated DC output delivering 24V at 1.5A for 36W total power
- Universal AC input accepts 85–264VAC at 47-63Hz for global deployment
- Output voltage adjustable 21.6–26.4VDC via front-panel trim
- Typical efficiency 87.5% typ. @ 115 Vac 89% typ. @ 230 Vac
- Rated for ambient operating temperature -30°C to +70°C
- Ingress protection IP20
- Typical efficiency 87.5% at full load
