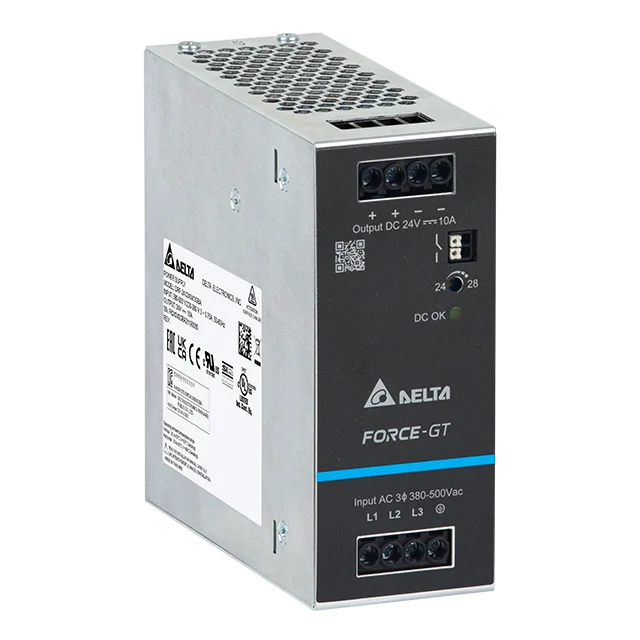

The DRF-24V240W3GBA from Delta Electronics is a 24V 240W 10A DIN-rail-mounted switching power supply from the Force-GT Series, designed for industrial control cabinets and machine wiring.
- Regulated DC output delivering 24V at 10A for 240W total power
- Universal AC input accepts 3 x 320–575VAC (3-Phase) or 2 x 340–575VAC (2-Phase) at 47-63Hz for global deployment
- Output voltage adjustable 24–28VDC via front-panel trim
- Typical efficiency 89.5% typ. @ 3 x 400 Vac & 3 x 500 Vac
- Rated for ambient operating temperature 3-Phase -40°C to +70°C; 2-Phase -40°C to +60°C
- Ingress protection IP20
- Typical efficiency 89.5% at full load
General
Brand
Delta Electronics
Series
Force-GT Series
Electrical
Rated Current
10A
Supply Voltage
3 x 320-575VAC (3-Phase) or 2 x 340-575VAC (2-Phase)
Power Rating
240W
Frequency
47-63Hz
Output Voltage
24VDC
Configuration
Mechanical & Rating
Dimensions
