LYTE II PSU 10A 120W 1ph 85-264VAC/12VDC
Delta Electronics

LYTE II PSU 10A 120W 1ph 85-264VAC/12VDC

Part No DRL-12V120W1EN
$ 66.51 $ 66.51 ex GST

  • Brand - Delta Electronics
  • Series
  • Rated Current
  • Supply Voltage
  • Power Rating
  • Frequency
  • Output Voltage
  • Phases
  • Connection Type
  • Housing Type / Body Style
  • Width
  • Height
  • Depth
Trade account? Sign in for account pricing
Contact Us

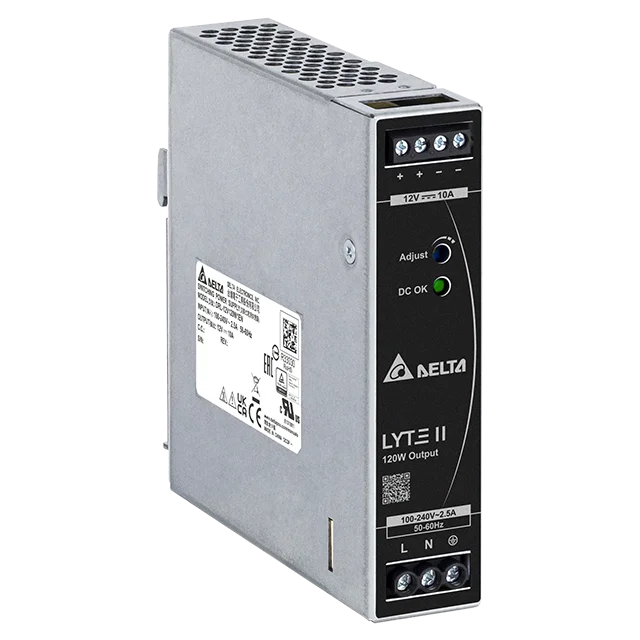

The DRL-12V120W1EN from Delta Electronics is a 12V 120W 10A DIN-rail-mounted switching power supply from the LYTE II Series, designed for industrial control cabinets and machine wiring.

  • Regulated DC output delivering 12V at 10A for 120W total power
  • Universal AC input accepts 90–264VAC at 47-63Hz for global deployment
  • Output voltage adjustable 10.8–13.2VDC via front-panel trim
  • Typical efficiency 86% typ.@ 230Vac
  • Rated for ambient operating temperature -40°C to +70°C
  • Typical efficiency 86% at full load
  • Convection cooling — no fan required
General
Brand Delta Electronics
Series LYTE II Series
Electrical
Rated Current 10A
Supply Voltage 90-264VAC
Power Rating 120W
Frequency 47-63Hz
Output Voltage 12VDC
Configuration
Phases 1Ph
Connection Type 3 Pins
Mechanical & Rating
Housing Type / Body Style DIN rail
Dimensions
Width 30mm
Height 116.8mm
Depth 123.6mm
