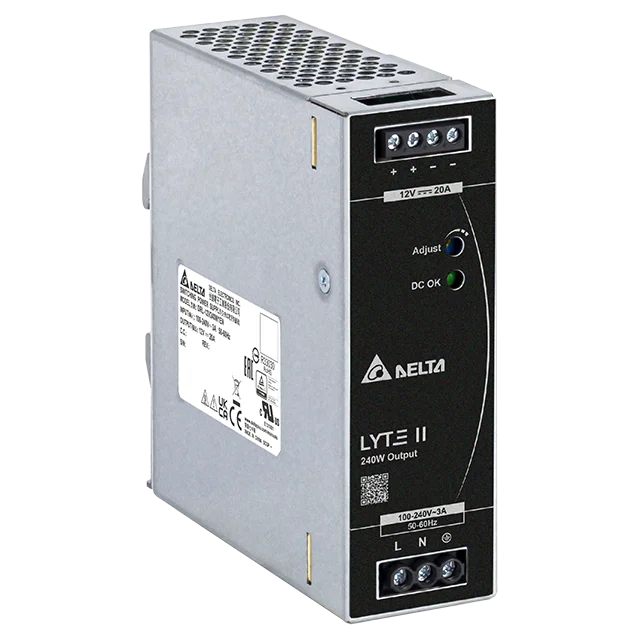

The DRL-12V240W1EN from Delta Electronics is a 12V 240W 20A DIN-rail-mounted switching power supply from the LYTE II Series, designed for industrial control cabinets and machine wiring.
- Regulated DC output delivering 12V at 20A for 240W total power
- Universal AC input accepts 90–264VAC at 47-63Hz for global deployment
- Output voltage adjustable 10.8–13.2VDC via front-panel trim
- Typical efficiency 86.5% typ. @ 230Vac
- Rated for ambient operating temperature -40°C to +70°C
- Typical efficiency 86.5% at full load
- Convection cooling — no fan required
General
Brand
Delta Electronics
Series
LYTE II Series
Electrical
Configuration
Mechanical & Rating
Housing Type / Body Style
DIN rail
Dimensions
