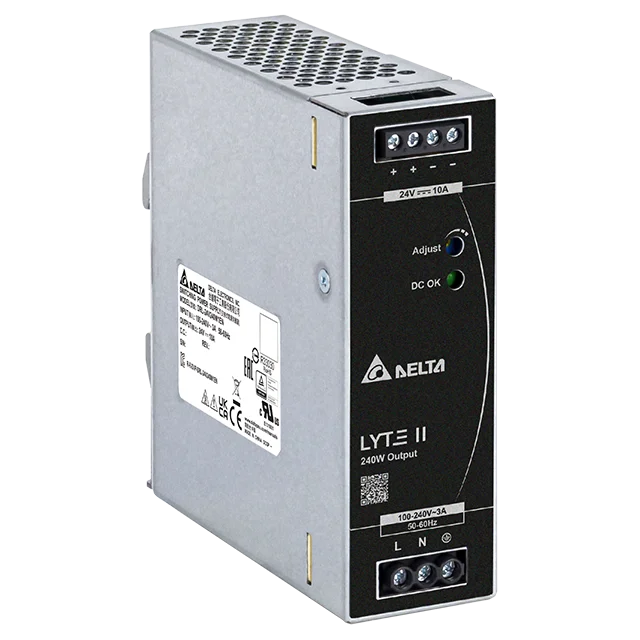

The DRL-24V240W1EN from Delta Electronics is a 24V 240W 10A DIN-rail-mounted switching power supply from the LYTE II Series, designed for industrial control cabinets and machine wiring.
- Regulated DC output delivering 24V at 10A for 240W total power
- Universal AC input accepts 90–264VAC at 47-63Hz for global deployment
- Output voltage adjustable 21.6–26.4VDC via front-panel trim
- Typical efficiency 90% typ. @ 230Vac
- Rated for ambient operating temperature -40°C to +70°C
- Typical efficiency 90.0% at full load
- Convection cooling — no fan required
General
Brand
Delta Electronics
Series
LYTE II Series
Electrical
Configuration
Mechanical & Rating
Housing Type / Body Style
DIN rail
Dimensions
Manual coming soon
We're working through documents across the range. Want this one sooner? Leave your email and we'll send it straight to you the moment it's ready.
