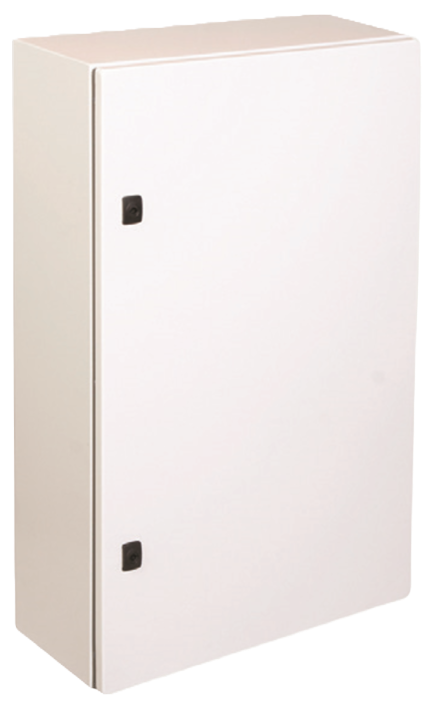

EM1006030D (1000 × 600 × 300mm (H×W×D)) — the EAE E-Kabin M Series is a monoblock steel wall-mounted electrical enclosure designed for general-purpose indoor electrical installations. The 1000 × 600 × 300mm (H×W×D) variant is suited to control panels, switchgear, instrumentation and building automation applications.
Key Features:
- IP66 rated — dust-tight and water-jet resistant (IEC 60529)
- Steel body with epoxy-polyester powder coat finish, RAL 7035 Light Grey (RAL 7035)
- Polyurethane foam-in-place door gasket — maintains seal integrity over time
- 130° door opening standard; 180° opening with optional hinge accessory Glazed door option available on request.
- Reversible door hinge — opening direction changeable on site
- Key lock with key retention feature
- Bracket set and earthing braid included. Mounting plate must be ordered separately (EM MK series).
- Standards: IEC 61439-1, IEC 62208, IEC 60529, IEC 62262
Applications:
- Industrial control and switchgear panels
- Motor starter and protection enclosures
- PLC, HMI and automation equipment
- Metering, instrumentation and building automation
- Junction and wiring distribution
