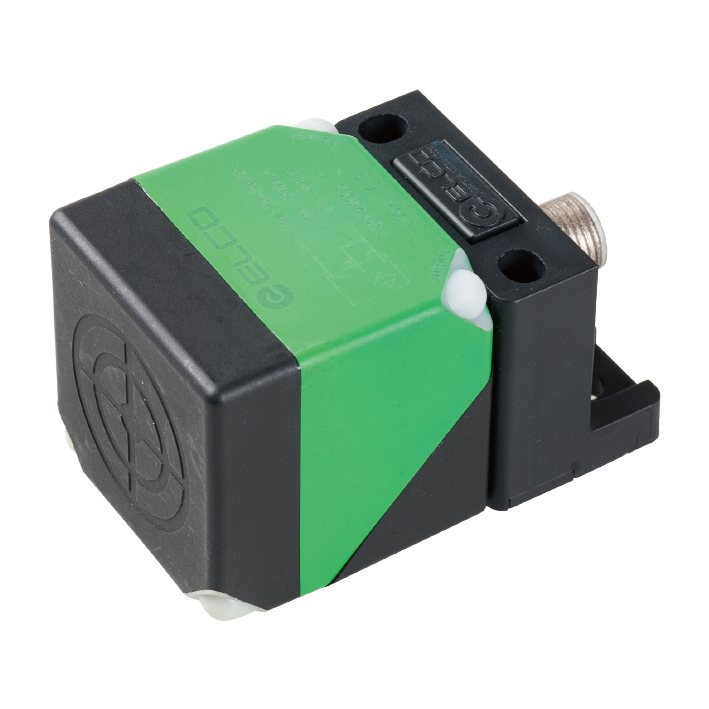

The Fi25-W40-BP6L-Q12 from Elco Automation is a large-format inductive proximity sensor in rectangular housing, providing detection at up to 25mm.
- 25mm switching distance with flush mounting — the sensing face sits level with the mounting surface without losing range
- PNP normally closed contact and normally open contact output on 10–30VDC supply
- 100Hz switching frequency — standard response speed for general industrial control
- M12 plug, 4-pin connector for fast field termination and replacement
- Plastic (PBT) 40 × 40 × 66mm housing — corrosion-immune in damp or mildly aggressive environments
- IP67 protection and -25°C to +70°C operating range; CE, RoHS, REACH certified
