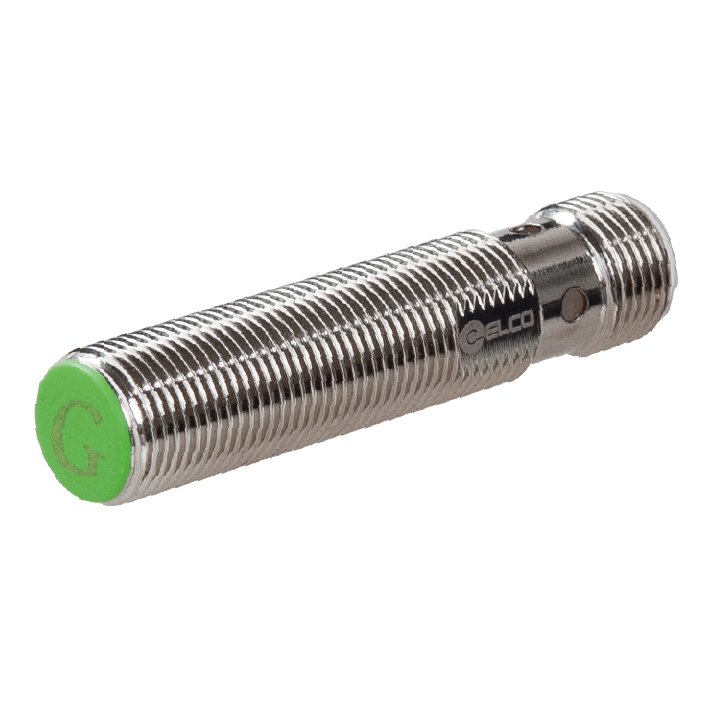

The Fi4-G12-CD6L-Q12 from Elco Automation is a standard inductive proximity sensor in M12 threaded cylindrical housing, providing detection at up to 4mm.
- 4mm switching distance with flush mounting — the sensing face sits level with the mounting surface without losing range
- Two-wire normally closed contact output on 10–30VDC supply
- 650Hz switching frequency — suits fast-response presence detection and part counting
- M12 plug, 2-pin connector for fast field termination and replacement
- Nickel-plated brass M12 × 54mm housing — robust in metal-rich and mildly aggressive plant environments
- IP68 protection and -30°C to +85°C operating range; CE, RoHS, REACH certified
