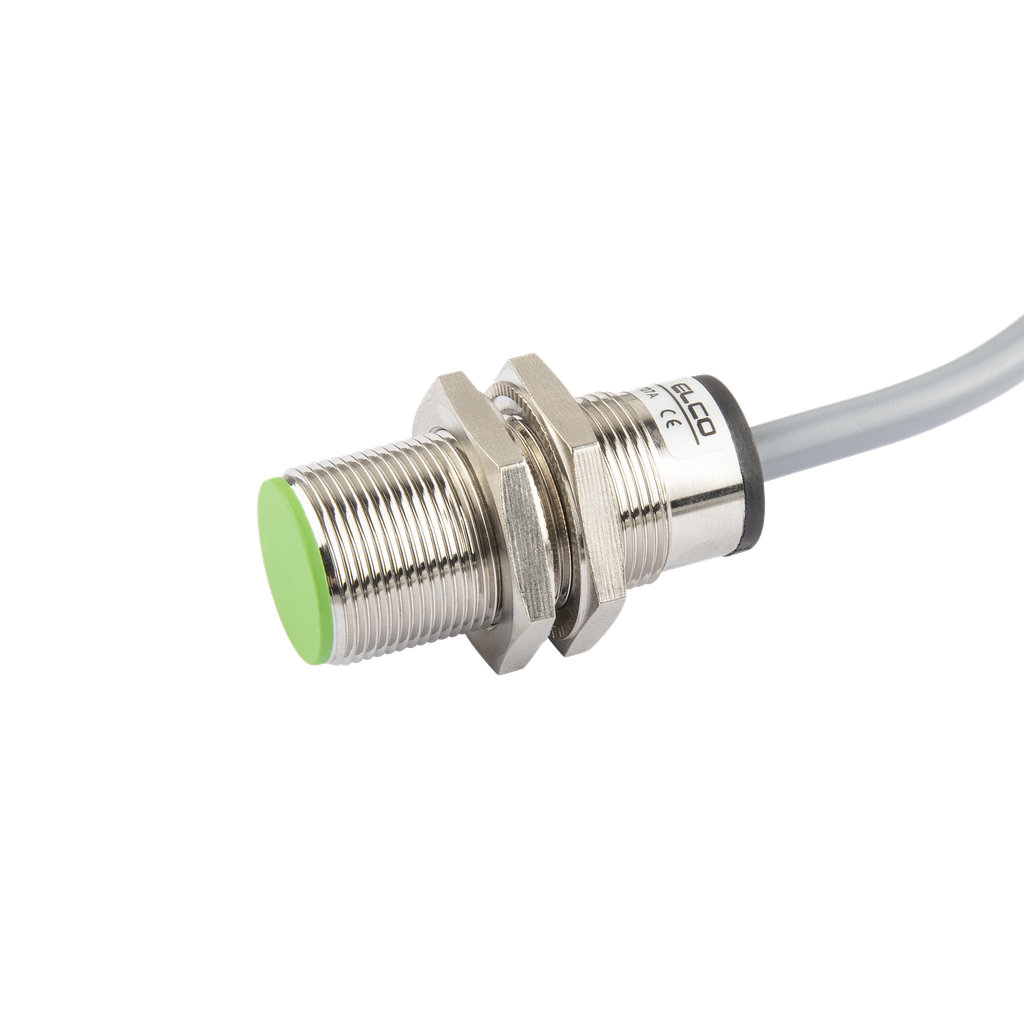

The Fi5-M18S-NE from Elco Automation is a standard-size inductive proximity sensor in M18 threaded cylindrical housing, providing detection at up to 5mm.
- 5mm switching distance with flush mounting — the sensing face sits level with the mounting surface without losing range
- NAMUR output on 7.7–9VDC supply
- 800Hz switching frequency — suits fast-response presence detection and part counting
- Hardwired PVC cable 2m — suitable for permanent or fixed mounting
- Nickel-plated brass M18 × 34mm housing — robust in metal-rich and mildly aggressive plant environments
- IP67 protection and -25°C to +70°C operating range; CE, RoHS, REACH certified
