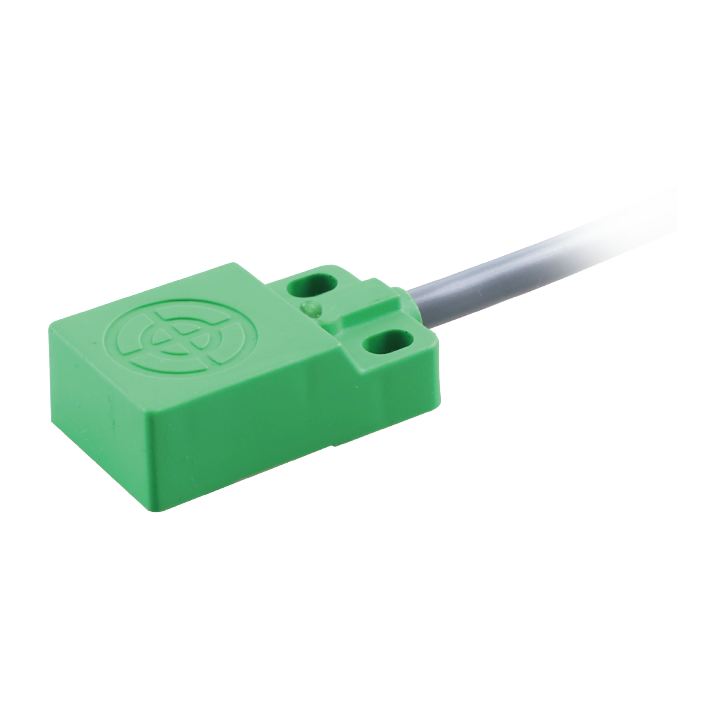

The Fi5-Q18C-ON6L from Elco Automation is a large-format inductive proximity sensor in rectangular housing, providing detection at up to 5mm.
- 5mm switching distance with flush mounting — the sensing face sits level with the mounting surface without losing range
- PNP normally closed contact output on 10–30VDC supply
- 800Hz switching frequency — suits fast-response presence detection and part counting
- Hardwired PVC cable 2m — suitable for permanent or fixed mounting
- Plastic (PA66) 18 × 30.5 × 10mm housing — corrosion-immune in damp or mildly aggressive environments
- IP67 protection and -25°C to +70°C operating range; CE, RoHS, REACH certified
