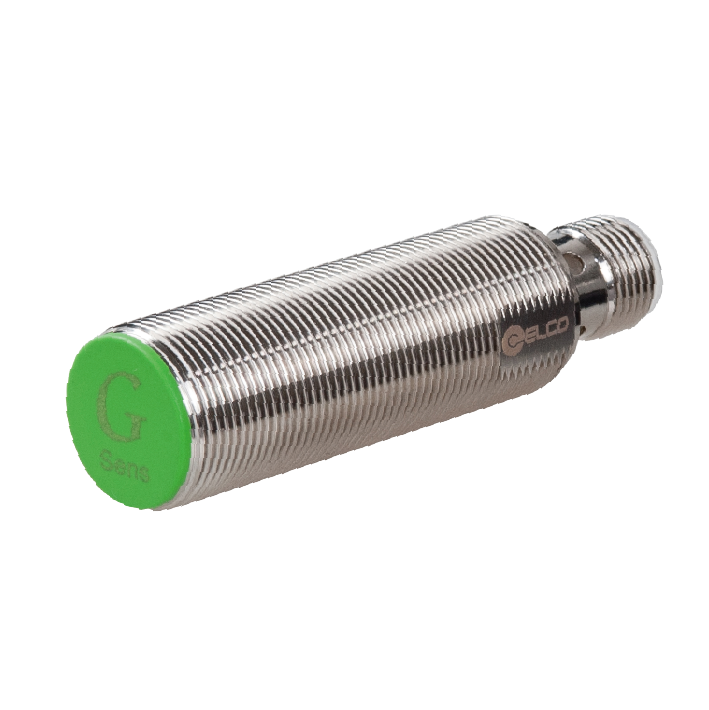

The Fi8-G18-OA41L-Q12 from Elco Automation is a standard-size inductive proximity sensor in M18 threaded cylindrical housing, providing detection at up to 8mm.
- 8mm switching distance with flush mounting — the sensing face sits level with the mounting surface without losing range
- Two-wire NO contact output on 20–250VAC/DC supply
- 20Hz (AC) / 500Hz (DC) switching frequency — suits contactor-switched and slower control logic
- M12 plug, 2-pin connector for fast field termination and replacement
- Nickel-plated brass M18 × 70mm housing — robust in metal-rich and mildly aggressive plant environments
- IP68 protection and -30°C to +85°C operating range; CE, RoHS, REACH certified
