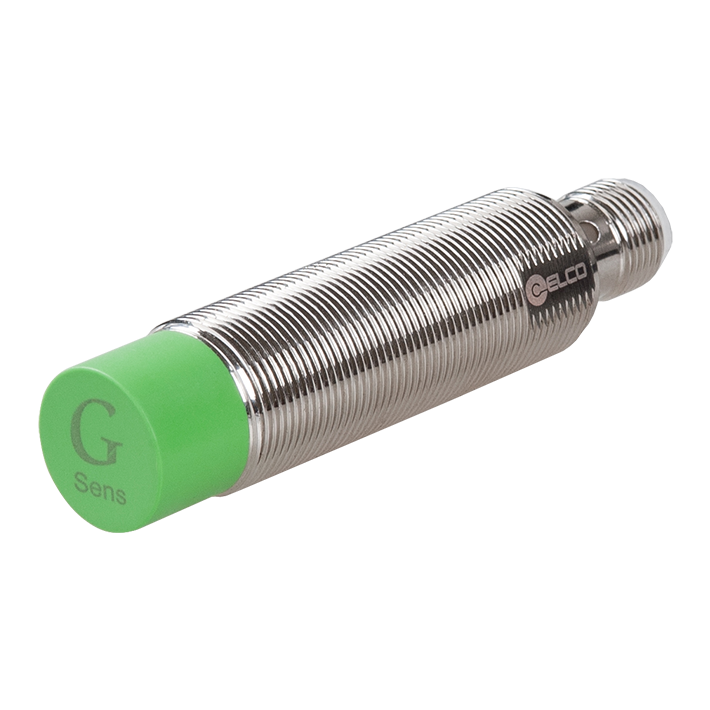

The Ni12-G18-OD6L-Q12 from Elco Automation is a standard-size inductive proximity sensor in M18 threaded cylindrical housing, providing detection at up to 12mm.
- 12mm switching distance with non-flush mounting — a clear zone around the sensing face is required to reach full range
- Two-wire NO contact output on 10–30VDC supply
- 600Hz switching frequency — suits fast-response presence detection and part counting
- M12 plug, 2-pin connector for fast field termination and replacement
- Nickel-plated brass M18 × 77mm housing — robust in metal-rich and mildly aggressive plant environments
- IP68 protection and -30°C to +85°C operating range; CE, RoHS, REACH certified
