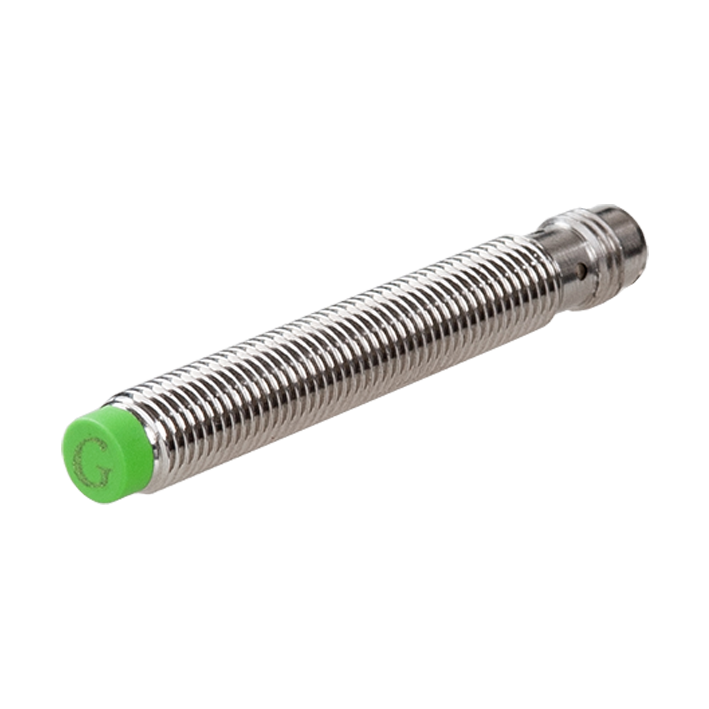

The Ni4-G08-OP6L-Q8 from Elco Automation is a compact inductive proximity sensor in M8 threaded cylindrical housing, providing detection at up to 4mm.
- 4mm switching distance with non-flush mounting — a clear zone around the sensing face is required to reach full range
- PNP NO contact output on 10–30VDC supply
- 750Hz switching frequency — suits fast-response presence detection and part counting
- M8 plug, 3-pin connector for fast field termination and replacement
- Nickel-plated brass M8 × 44.6mm housing — robust in metal-rich and mildly aggressive plant environments
- IP68 protection and -30°C to +85°C operating range; CE, RoHS, REACH certified
