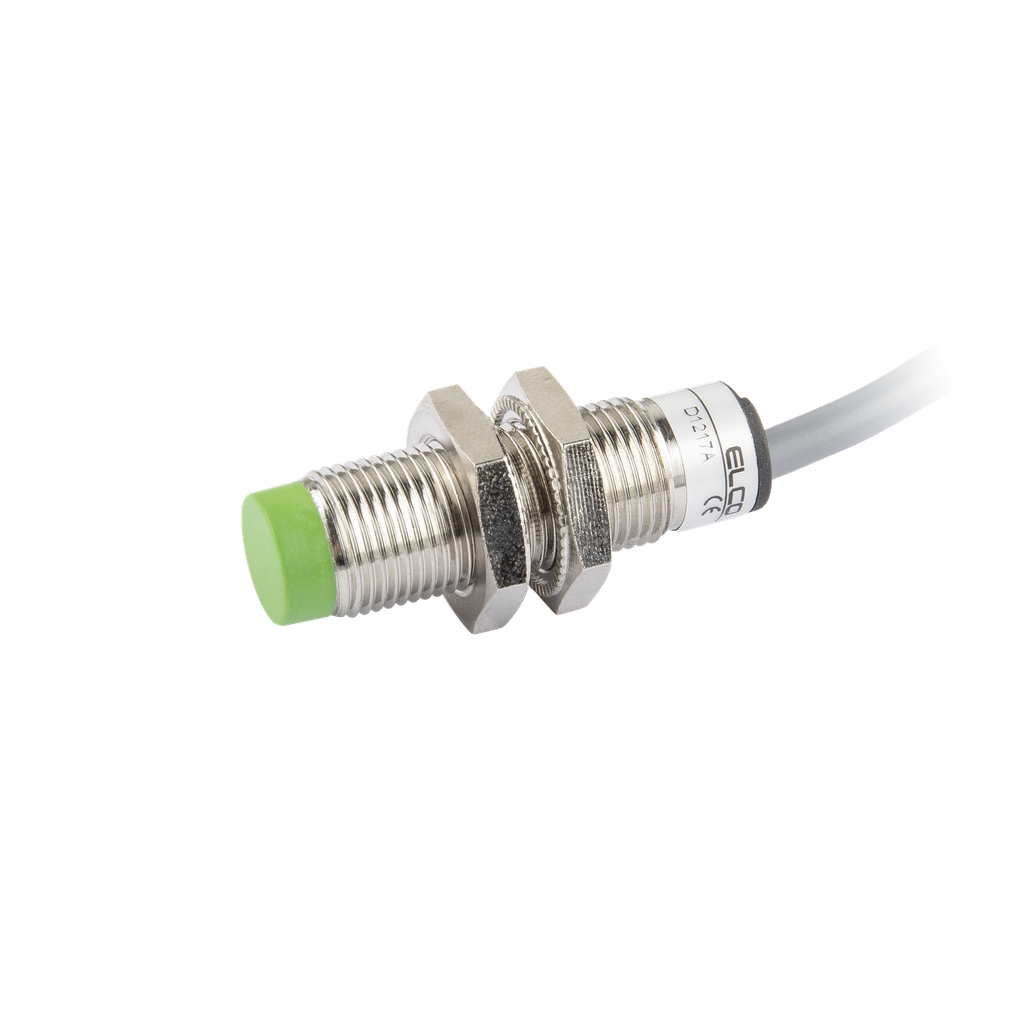

The Ni4-M12S-NE from Elco Automation is a standard inductive proximity sensor in M12 threaded cylindrical housing, providing detection at up to 4mm.
- 4mm switching distance with non-flush mounting — a clear zone around the sensing face is required to reach full range
- NAMUR output on 7.7–9VDC supply
- 800Hz switching frequency — suits fast-response presence detection and part counting
- Hardwired PVC cable 2m — suitable for permanent or fixed mounting
- Nickel-plated brass M12 × 34mm housing — robust in metal-rich and mildly aggressive plant environments
- IP67 protection and -25°C to +70°C operating range; CE, RoHS, REACH certified
