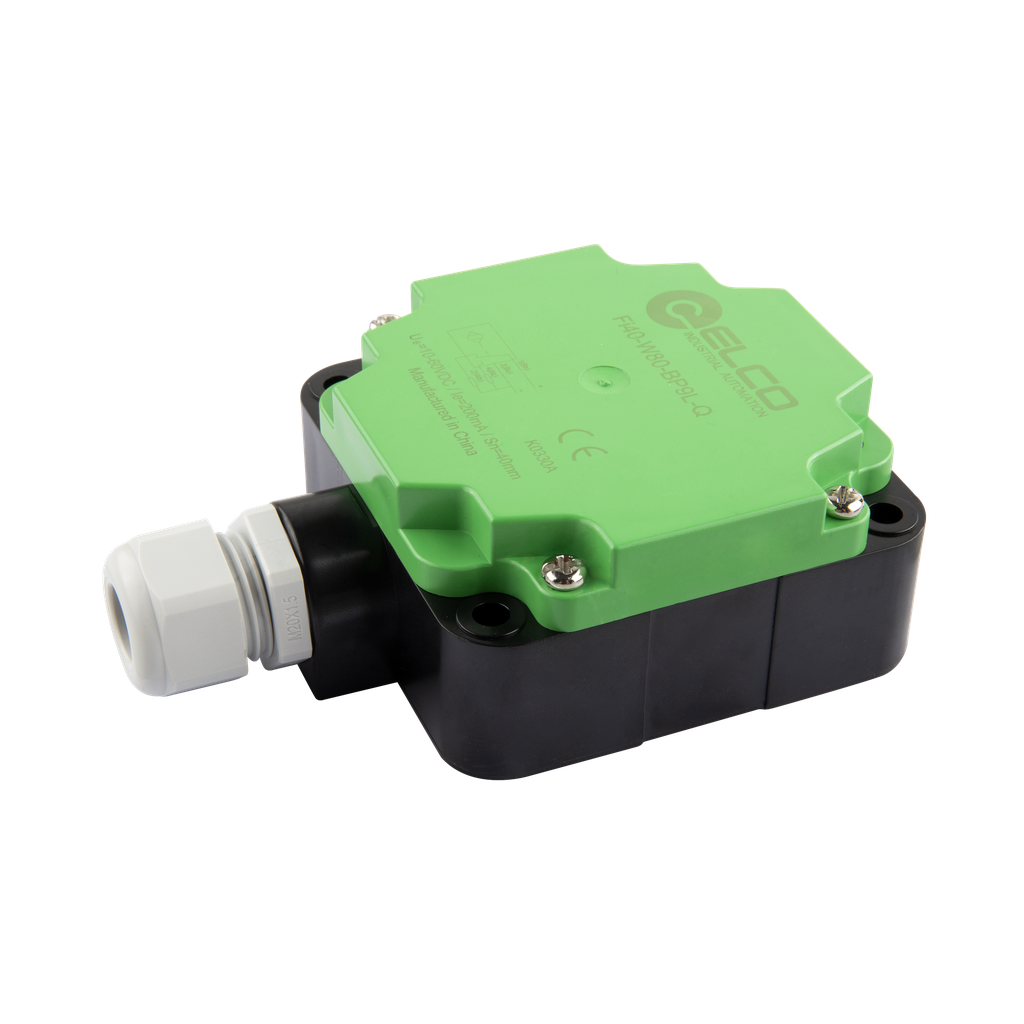

The Ni70-W80-BP6L-Q from Elco Automation is a large-format inductive proximity sensor in rectangular housing, providing detection at up to 70mm.
- 70mm switching distance with non-flush mounting — a clear zone around the sensing face is required to reach full range
- PNP normally closed contact and normally open contact output on 10–30VDC supply
- 30Hz switching frequency — suits contactor-switched and slower control logic
- M12 plug, 4-pin connector for fast field termination and replacement
- Plastic (PBT) 80 × 80 × 40mm housing — corrosion-immune in damp or mildly aggressive environments
- IP67 protection and -25°C to +70°C operating range; CE, RoHS, REACH certified
