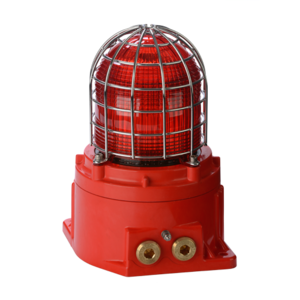

High-output LED multi-function beacon with up to 338 cd flashing or 174 cd steady output, globally approved for Zone 1, 2, 21 & 22 and Class I Div 2 locations. Five selectable flash rates with automatic synchronisation across multi-beacon systems; DC versions feature three remotely selectable stages. Robust GRP enclosure with field-replaceable UV-stable filter and three cable entries. SIL1 & SIL2 Route 2H compliant to IEC61508 (2010).
- Five flash rates: 1Hz, 1.33Hz, 2Hz, double and triple flash.
- Automatic synchronisation on multi-beacon systems
- High and low power Steady modes
- Three remotely selectable stages/channels on DC versions.
- A4 316 Stainless Steel guard included as standard
- UV stable polycarbonate lens colour filter – field replaceable
- 3 x cable entries
- Stopping plugs included
- Robust corrosion proof GRP (glass reinforced polyester) enclosure
- UL Marine approved
