GNExCP6-PB Push Button Manual Call Point
GNExCP6-PB Push Button Manual Call Point
$ 1,780.30
$ 1,780.30
GNExCP7-BG Break Glass Manual Call Point
GNExCP7-BG Break Glass Manual Call Point
$ 2,177.21
$ 2,177.21

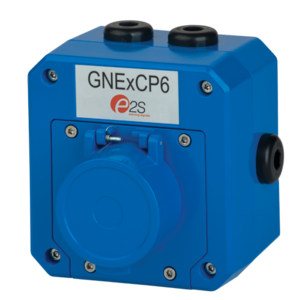

GNExCP6-PT Push Button Tool Reset Call Point

GNExCP6-PT Push Button Tool Reset Call Point

Part No GNEXCP6APTDDLAB1A1BN
$ 1,780.30 $ 1,780.30 ex GST

  • Mounting / Entry
  • Entries
  • Stopping plug/adaptor
  • Switch type
  • System voltage
  • Product option
  • Enclosure colour
  • Terminal Type
  • LED Indicator
  • Duty Label / Tag
  • Lift Flap
Trade account? Sign in for account pricing
Contact Us

Flameproof tool-reset push button manual call point approved for Zone 1, 2, 21 & 22 for fire and gas alarm control. Lightweight UV-stable GRP enclosure with spring-loaded cover requiring two-action activation; user resettable via special key supplied. Certified to IECEx and ATEX with additional PESO, INMETRO and Ex EAC approvals; supports single or double pole changeover switches with optional EOL resistors, diodes, and LED indicator. Available in multiple housing colours.

  • Alternative housing colours are available to meet specific requirements
  • Single or double pole c/o switch
  • DIN rail mounted terminal blocks: 8 × 2.5mm²
  • Metalised polyester or stainless steel "Duty" label
  • Series and/or End of Line resistors, diodes & Zener diodes
  • Optional Indicator LED
Mounting / Entry Mounting/version A — code-embedded, flat-priced; confirm (A), Mounting/version B — confirm (B), Mounting/version C — confirm (C)
Entries Entries: 3 x M20 [Default] (A), Entries: 2 x 1/2"NPT - adaptors (B), Entries: 2 x 3/4"NPT - adaptors (C), Entries: 2 x M25 - adaptors (D), Entries: 1 x 1/2"NPT - adaptor (E), Entries: 1 x 3/4"NPT - adaptor (F), Entries: 1 x M25 - adaptor (G)
Stopping plug/adaptor Stopping plug/adaptor: Brass (B), Stopping plug: Nylon (N), Stopping plug/adaptor: Nickel Plated (P), Stopping plug/adaptor: Stainless Steel (S)
Switch type Switch type: DPCO (D), Switch type: SPCO (S)
Product option Product option: Standard (1), Product option: Alternative wiring option Config. 4 or 8 (B or C version only) (W), Product option: Dual switch parallel wiring (B or C version only) (P), Product option: Dual switch parallel alt. wiring Config. 20 (B or C version only) (V)
Enclosure colour Enclosure colour: Blue (B), Enclosure colour: Black (K), Enclosure colour: Green (N), Enclosure colour: Red (R), Enclosure colour: Yellow/Black striped (S), Enclosure colour: Red/White striped (V), Enclosure colour: Yellow (Y), Enclosure colour: Magenta (M), Enclosure colour: Red/Black striped (Z)
Terminal Type DIN Rail 8 x 2.5mm terminals (D), Standard 6 x 4mm terminals (S)
LED Indicator No LED indicator – Default: N for A versions (N), LED indicator (GNExCP6B or C versions only) (L), LED indicator (GNExCP6C versions only) max. current: 20mA (C)
Duty Label / Tag No Duty label, no Equip. tag (1), Duty label Stainless Steel (2), Duty label St/St + Equip. tag (3), Duty label Metalised Polyester (4), Duty label M. Poly. + Equip. tag (5), Equip. tag only (6), Special label requirement (7)
System voltage Product version: IECEx, ATEX, Ex EAC, PESO, INMETRO, SIL2 (A)
Lift Flap Stainless Steel Lift flap (BG version only) (L)
