GNExCP7-PB Dual Action Push Button Manual Call Point

Price:

$ 2,067.74
1800 252 995 sales@mechtric.com.au
  2. Shop
  3. Control & Signalling
  4. Hazardous Area Warning Devices
  5. Manual Call Points
  6. GNExCP7-PB Dual Action Push Button Manual Call Point
  7. Manual Call Points
D1xS2H 128dB(A) Alarm Horn Sounder
D1xS2H 128dB(A) Alarm Horn Sounder
$ 3,131.29
$ 3,131.29
GNExCP7-PM Momentary Push Button Manual Call Point
GNExCP7-PM Momentary Push Button Manual Call Point
$ 2,135.72
$ 2,135.72
GNExCP7-PB Dual Action Push Button Manual Call Point

GNExCP7-PB Dual Action Push Button Manual Call Point

Part No GNEXCP7PBDDNAB1A1BN
$ 2,067.74 $ 2,067.74 ex GST

  • Entries
  • Stopping plug/adaptor
  • Switch type
  • Product version
  • Product option
  • Enclosure colour
  • Terminal Type
  • LED indicator
  • Duty Label / Tag
  • Lift Flap
Trade account? Sign in for account pricing
Contact Us

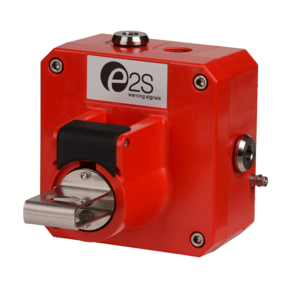

Explosion-proof dual action (twist and push) manual call point with robust GRP enclosure and 316 stainless steel mechanism, approved for Zone 1, 2, 21 & 22 and Class I/II Div 2 applications. Globally certified to IECEx, ATEX, UL and cUL standards. IP66/67 rated with three M20 cable entries; available with standard DIN rail terminals or innovative E2S termination board for field-installed EOL and series devices, optional addressable modules, and LED indicator. SIL 2 compliant to IEC 61508 (2010).

  • Corrosion proof GRP enclosure, anti-static & UV stable
  • Ingress protection IP66/67/68, 4/4X/3R/13
  • Single or double switch (SPCO/DPCO)
  • 316 (A4) Stainless Steel mechanism
  • 3 x M20 cable entries, 2 x Stopping plugs included
  • Captive stainless steel fasteners
  • Available with addressable modules
  • Optional LED indicator
Entries Entries: 3 x M20 [Default] (A), Entries: 2 x 1/2"NPT - adaptors (B), Entries: 2 x 3/4"NPT - adaptors (C), Entries: 2 x M25 - adaptors (D), Entries: 1 x 1/2"NPT - adaptor (E), Entries: 1 x 3/4"NPT - adaptor (F), Entries: 1 x M25 - adaptor (G)
Stopping plug/adaptor Stopping plug/adaptor: Brass (B), Stopping plug/adaptor: Nickel Plated (P), Stopping plug/adaptor: Stainless Steel (S)
Switch type Switch type: DPCO/DPDT (D), Switch type: SPCO/SPDT (S)
Product version Product version: UL, cUL, IECEx & ATEX, SIL2 (A), Product version: Honeywell TC809B1008 module IECEx, ATEX (H), Product version: Ziton A45E-2 module IECEx, ATEX (Z), Product version: Johnson Controls MIM800 module IECEx, ATEX (M), Product version: Hochiki CHQ-CP2 monitor IECEx, ATEX (C), Product version: Apollo XP95 mini module IECEx, ATEX (P), Product version: Consilium IC10 module IECEx, ATEX (E), Product version: Siemens XTRI-M module IECEx, ATEX (S)
Product option Product option: Standard product (1), Product option: Alternate EOL & series wiring (W), Product option: Duplicated EOL and/or series devices (2), Product option: Duplicated EOL and series – alternate wiring (Y), Product option: Parallel wiring with or without EOL/series (P), Product option: Parallel with EOL and series alternate wiring (V)
Enclosure colour Enclosure colour: Blue (B), Enclosure colour: Black (K), Enclosure colour: Green (N), Enclosure colour: Red (R), Enclosure colour: Yellow/Black striped (S), Enclosure colour: Red/White striped (V), Enclosure colour: Yellow (Y), Enclosure colour: Magenta (M), Enclosure colour: Red/Black striped (Z)
Terminal Type DIN Rail 8 x 2.5mm terminals (D), PCBA: 6 x 4mm with EOL & Series terminations (P), Addressable module – select below (X)
LED indicator LED indicator: No LED required (N), LED indicator: LED with 1.5K ballast resistor (L), LED indicator: LED without ballast resistor (C)
Duty Label / Tag No Duty label, no Equip. tag (1), Duty label Stainless Steel (2), Duty label St/St + Equip. tag (3), Duty label Metalised Polyester (4), Duty label M. Poly. + Equip. tag (5), Equip. tag only (6), Special label requirement (7)
Lift Flap No Lift flap (Default on -PB version) (N)
