Miniature Circuit Breaker (MCB), 1P 16A, 6kA C-Curve
Miniature Circuit Breaker (MCB), 1P 16A, 6kA C-Curve
$ 6.25
$ 6.25
Miniature Circuit Breaker (MCB), 1P 25A, 6kA C-Curve
Miniature Circuit Breaker (MCB), 1P 25A, 6kA C-Curve
$ 6.25
$ 6.25

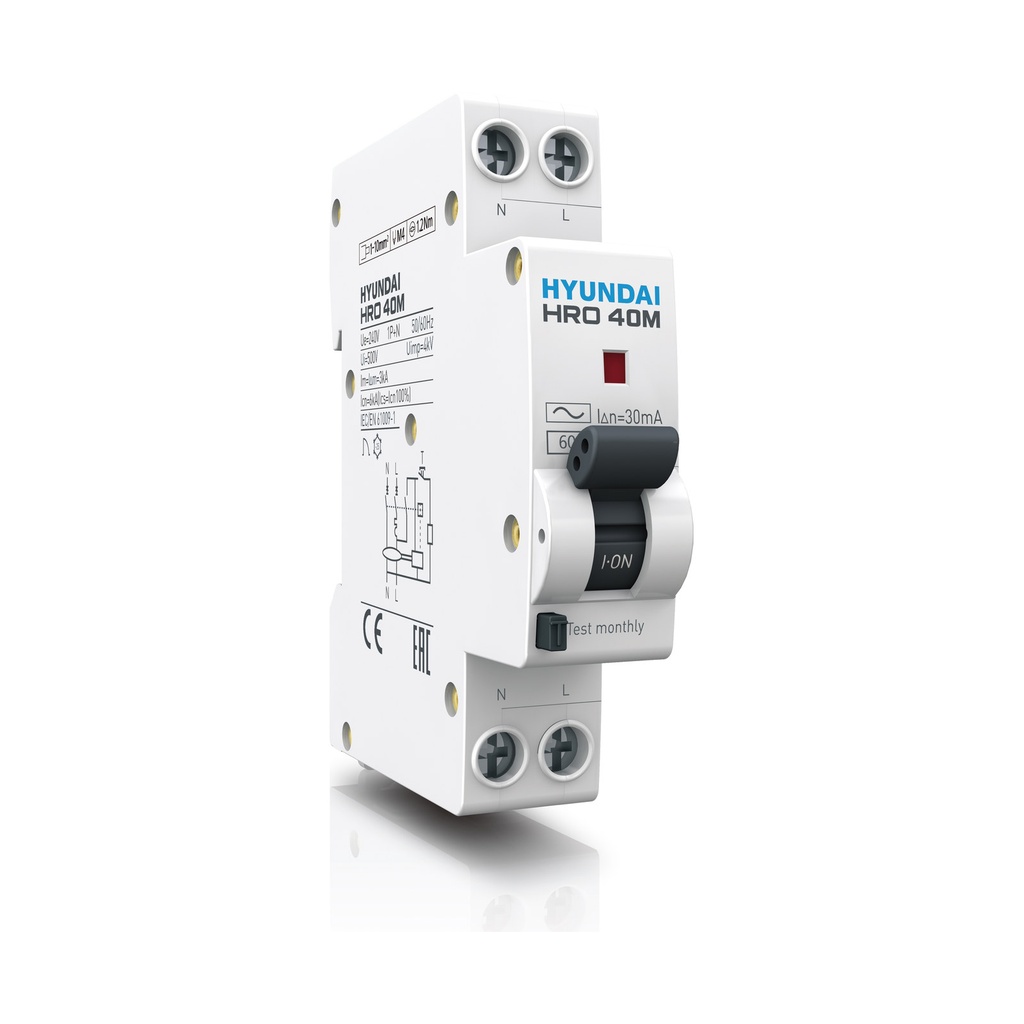

RCBO 1P+N, 20A, 10kA, 30mA Type A (no lead)
HD Hyundai Electric

RCBO 1P+N, 20A, 10kA, 30mA Type A (no lead)

Part No HRO40PN1G4C0000C00020FC
$ 43.10 $ 43.10 ex GST

  • Component Type
  • Brand - HD Hyundai Electric
  • Series
  • Rated Current
  • Breaking Capacity
  • Trip Curve
  • Number of Poles
  • Mounting Type
  • Residual Current Sensitivity
  • RCD Type
Trade account? Sign in for account pricing
Contact Us

The HD Hyundai Electric HRO40PN1G4C0000C00020FC is a residual current device — 1P+N, 20A, 10kA breaking capacity, C-curve, 30mA residual sensitivity.

Specifications

  • Rated current: 20A
  • Poles: 1P+N
  • Breaking capacity: 10kA
  • Trip curve: C
  • Residual sensitivity: 30mA
  • RCD type: A
  • Mounting: DIN rail
  • Series: HRO40
  • Standards: IEC 61009-1, AS/NZS 61009.1, RCM certified (EESS)
General
Component Type Residual current device (RCD)
Brand HD Hyundai Electric
Series HRO40
Electrical
Rated Current 20A
Breaking Capacity 10kA
Trip Curve C
Residual Current Sensitivity 30mA
RCD Type A
Configuration
Number of Poles 1P+N
Mechanical & Rating
Mounting Type DIN rail
