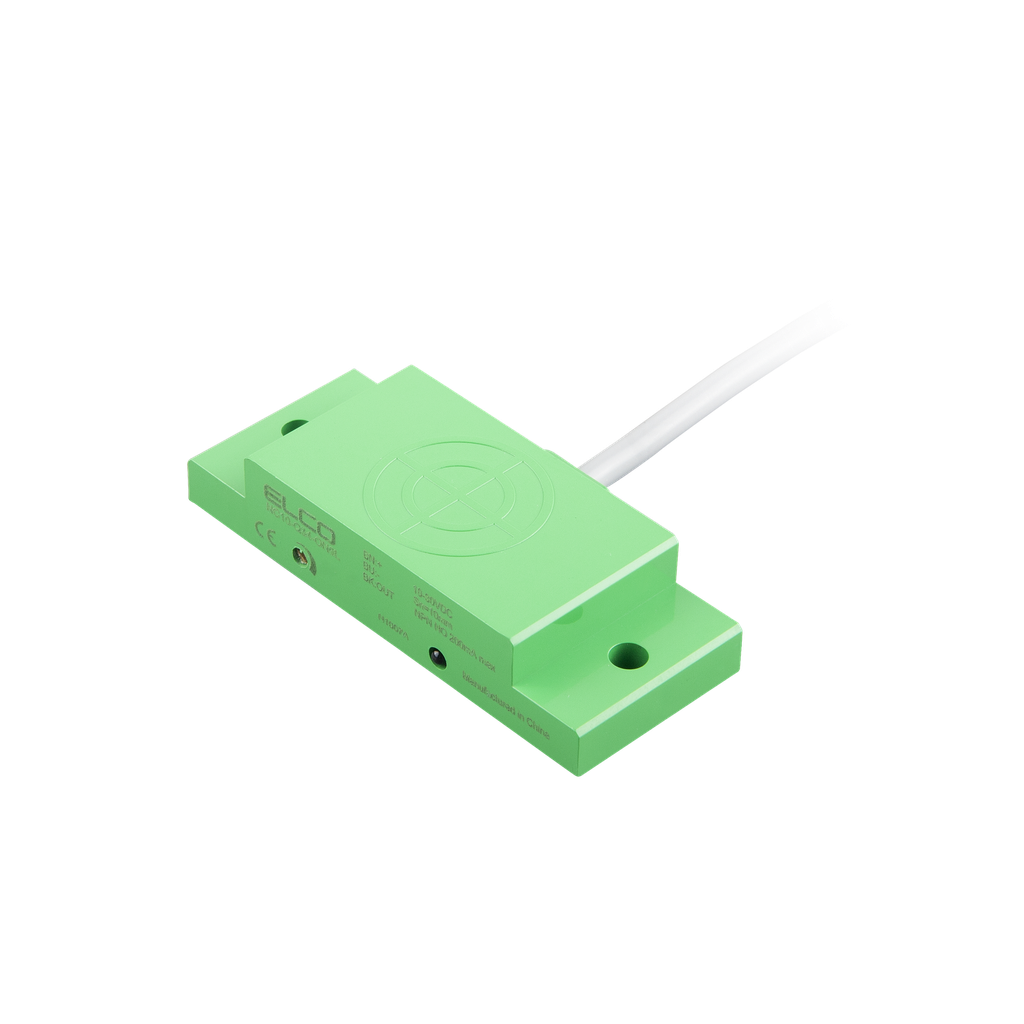

The NC10-Q34-OP6L from Elco Automation is a large-format capacitive proximity sensor in rectangular housing, providing detection at up to 10mm.
- 10mm switching distance with non-flush mounting — a clear zone around the sensing face is required to reach full range
- PNP NO contact output on 10–30VDC supply
- 30Hz switching frequency — suits contactor-switched and slower control logic
- Hardwired PVC cable 2m — suitable for permanent or fixed mounting
- Plastic (PBT) 25 × 50 × 10mm housing — corrosion-immune in damp or mildly aggressive environments
- IP67 protection and -25°C to +70°C operating range; CE, RoHS, REACH certified
