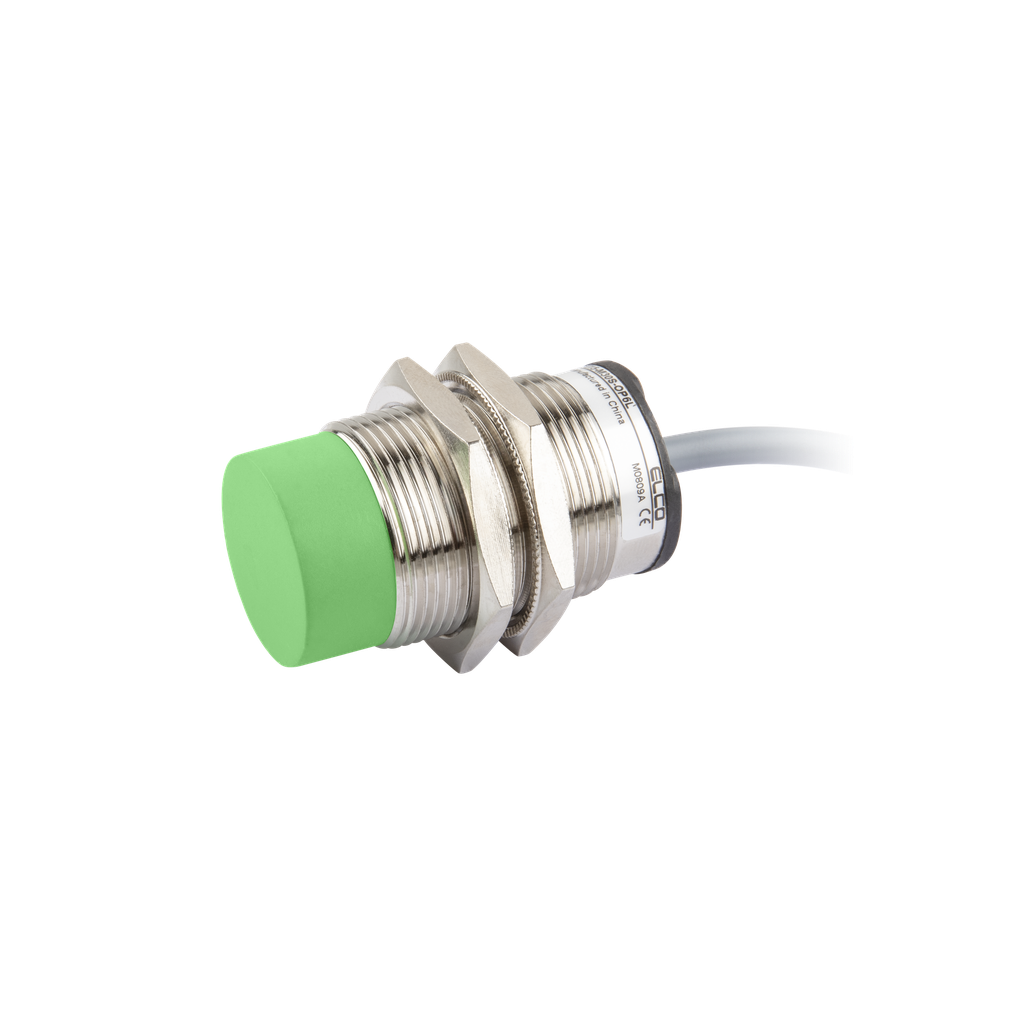

The Ni15-M30S-NE from Elco Automation is a larger-bodied inductive proximity sensor in M30 threaded cylindrical housing, providing detection at up to 15mm.
- 15mm switching distance with non-flush mounting — a clear zone around the sensing face is required to reach full range
- NAMUR output on 7.7–9VDC supply
- 200Hz switching frequency — suits fast-response presence detection and part counting
- Hardwired PVC cable 2m — suitable for permanent or fixed mounting
- Nickel-plated brass M30 × 54mm housing — robust in metal-rich and mildly aggressive plant environments
- IP67 protection and -25°C to +70°C operating range; CE, RoHS, REACH certified
