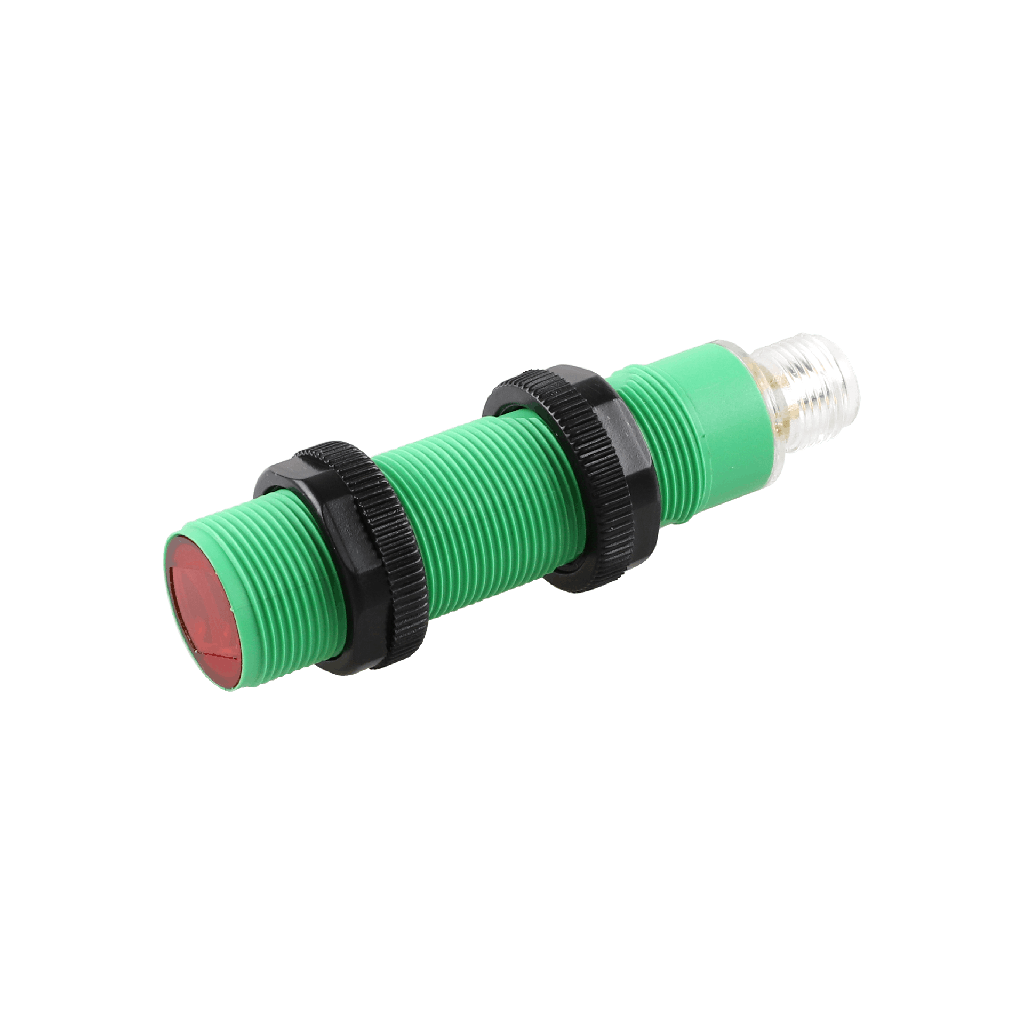

The OP18-S6Q from Elco Automation is a standard-size photoelectric sensor in M18 threaded cylindrical housing, providing detection at up to 10m.
- 10m operating range (Through-beam)
- Infrared light emitter — matched to industrial automation targets and surfaces
- Through-beam transmitter — pair with a matching receiver; object detection is signalled when the emitted beam is interrupted at the receiver
- 10–30VDC supply for direct control-panel integration
- M12 plug, 4-pin connector for fast field termination and replacement
- Plastic (PA66) M18 × 76.5mm housing — corrosion-immune in damp or mildly aggressive environments
- IP67 protection and -25°C to +65°C operating range; CE, RoHS, REACH certified
