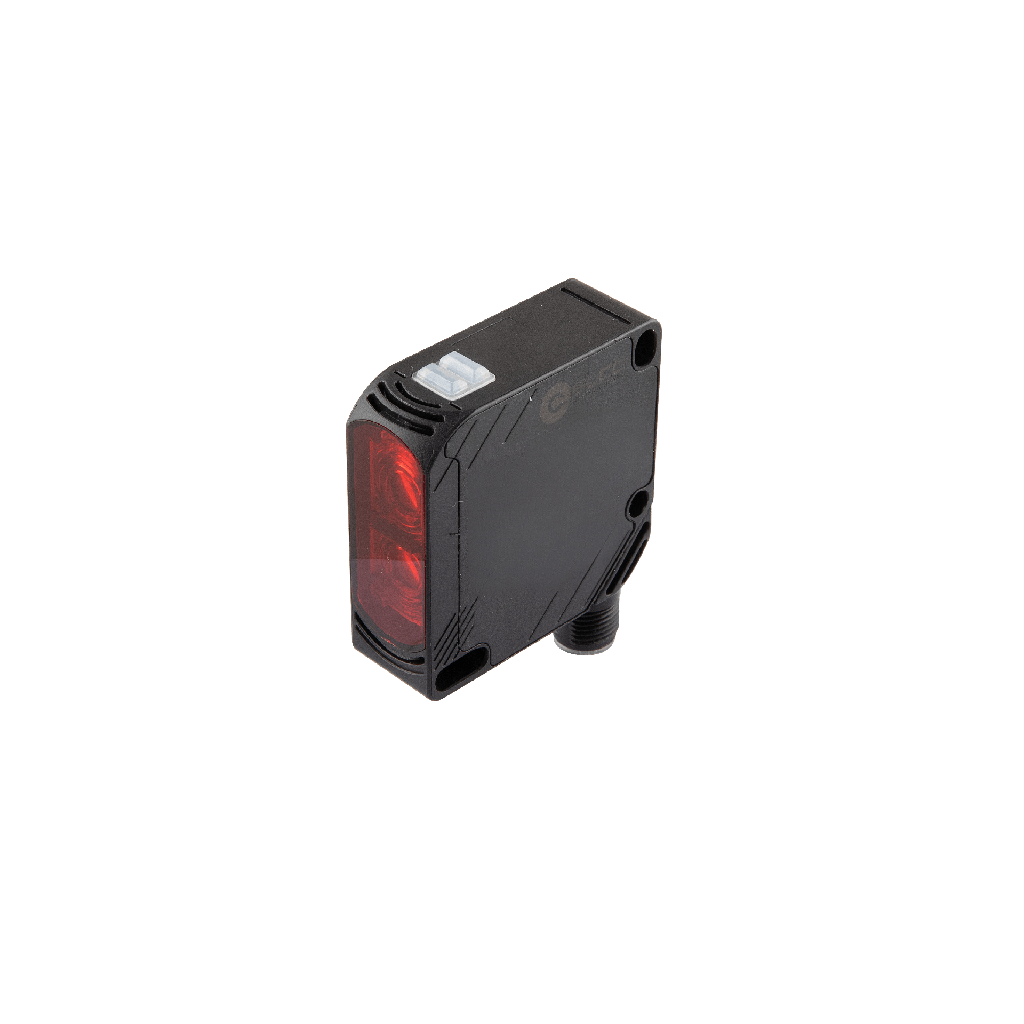

The OS50-S6Q from Elco Automation is a large-format photoelectric sensor in rectangular housing, providing detection at up to 40m.
- 40m operating range (Through-beam)
- Infrared light emitter — matched to industrial automation targets and surfaces
- Through-beam transmitter — pair with a matching receiver; object detection is signalled when the emitted beam is interrupted at the receiver
- 10–30VDC supply for direct control-panel integration
- M12 plug, 4-pin connector for fast field termination and replacement
- Plastic (PA66) 50 × 18 × 50mm housing — corrosion-immune in damp or mildly aggressive environments
- IP67 protection and -25°C to +55°C operating range; CE, RoHS, REACH certified
