ReeR

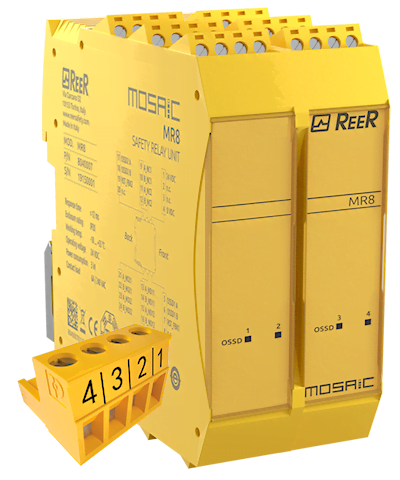

MR8 Safety Relay Expansion Unit, 8 Safety Relays (8 NO + 4 NC contacts), Screw Terminal Blocks

Part No 1100049
$ 728.01 $ 728.01 ex GST

  • Brand - ReeR
  • Rated Current
  • Supply Voltage
  • Contact Configuration
  • Switching Output
  • IP Rating
  • Housing Type / Body Style
  • Width
  • Height
  • Depth
Trade account? Sign in for account pricing
Contact Us

The 1100049 from ReeR is a modular safety controller with 8 NO + 4 NC (6A at 250VAC) relay outputs, rated to SIL 3 - SILCL 3 - PL e - Cat. 4.

  • Safety rated to SIL 3 - SILCL 3 - PL e - Cat. 4
  • 8 NO + 4 NC (6A at 250VAC) forcibly guided contact safety relay outputs
  • Removable terminal blocks, screw contacts
  • Compact 108 x 45 x 114.5mm housing
  • 35mm DIN rail fastening according to EN 50022-35 standard
  • IP20 for housing - IP2X for terminal block ingress protection
  • Made in Italy by ReeR S.p.A.
General
Brand ReeR
Electrical
Rated Current 6A
Supply Voltage 24VDC
Configuration
Contact Configuration 8NO+4NC
Switching Output Relay
Mechanical & Rating
IP Rating IP2X
Housing Type / Body Style DIN rail
Dimensions
Width 45mm
Height 108mm
Depth 114.5mm

PDF Datasheet — 1100041-Datasheet_MOSAIC_MR4.pdf 447.4 KB Download

PDF Manual — INSTRUCTION MANUALS_MOSAIC.pdf 10.7 MB Download
