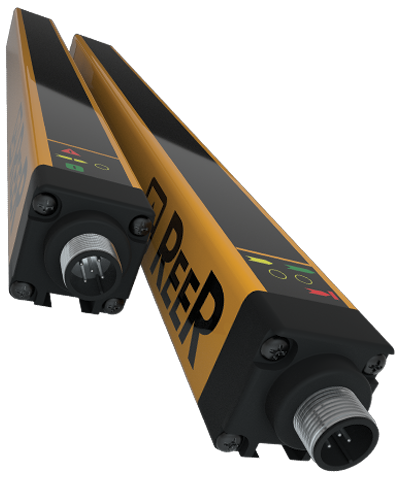

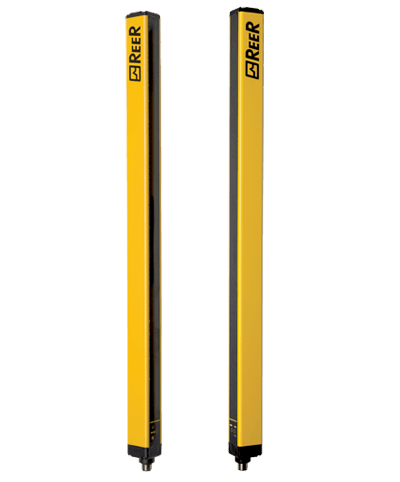

The EOS2 2B X from ReeR is an access control detection safety light curtain, rated to Type 2 - SIL 1 - SILCL 1 - PL c - Cat. 2 with a maximum operating range of 12m.
- Controlled height of 590mm with 2 beams
- Compact 28 x 30mm cross section for space-constrained installations
- 2 Fail-safe PNP (400mA at 24VDC) with protection against short circuit, overload and reverse polarity
- User-selectable automatic or manual restart mode
- 3ms Response time for fast detection
- M12 5-pole connector (emitter), M12 8-pole connector (receiver)
- Made in Italy by ReeR S.p.A.
General
Electrical
Configuration
Connection Type
M12 5-pole
Switching Output
Transistor PNP
Operating Mode
Manual/Auto
Detection Type
Access control
Mechanical & Rating
Dimensions
