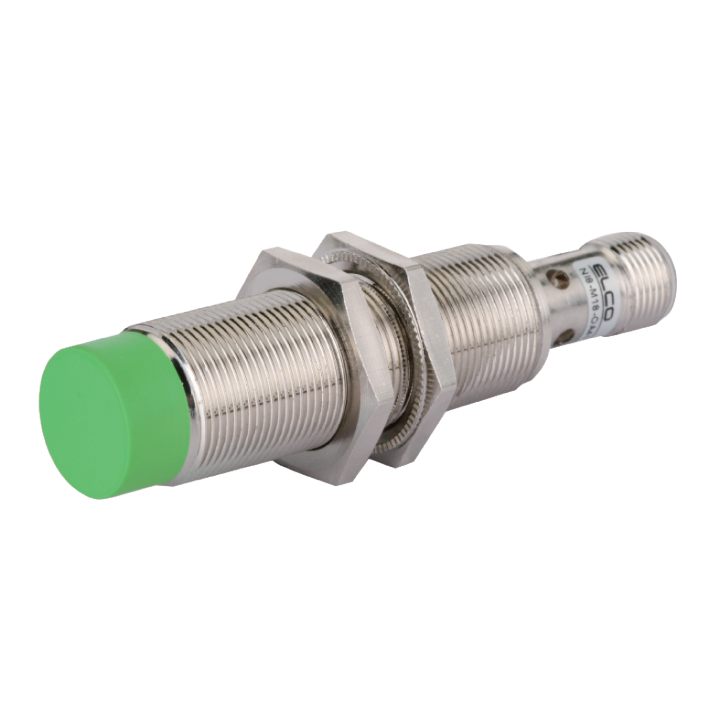

The Ni8-M18-LIU-Q12 from Elco Automation is a standard-size inductive proximity sensor in M18 threaded cylindrical housing, providing detection at up to 8mm.
- 8mm switching distance with non-flush mounting — a clear zone around the sensing face is required to reach full range
- Analogue 0–10VDC / 0–20mA output on 15–30VDC supply
- 500Hz switching frequency — suits fast-response presence detection and part counting
- M12 plug, 4-pin connector for fast field termination and replacement
- Nickel-plated brass M18 × 82mm housing — robust in metal-rich and mildly aggressive plant environments
- IP67 protection and -25°C to +70°C operating range; CE, RoHS, REACH certified
