ReeR

SAFETY RELAY 2NO 1NC

Part No SR ZERO
173.53 173.53 ex GST

  • Brand - ReeR
  • Series
  • Rated Current
  • Supply Voltage
  • Contact Configuration
  • Switching Output
  • IP Rating
  • Housing Type / Body Style
  • Width
  • Height
  • Depth

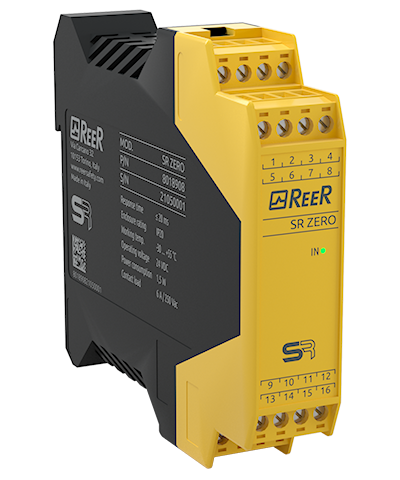

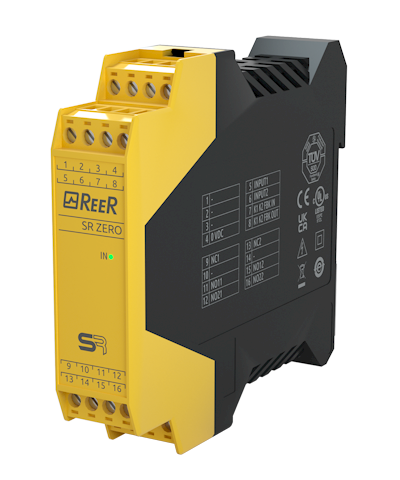

The SR ZERO from ReeR is a safety relay interface with 2 NO + 1 NC (6A at 250VAC) relay outputs, rated to PL e - Cat. 4.

  • Safety rated to PL e - Cat. 4
  • 2 NO + 1 NC (6A at 250VAC) forcibly guided contact safety relay outputs
  • Removable terminal blocks, screw contacts
  • Compact 99 x 22.5 x 114.5mm housing
  • 35mm DIN rail fastening according to EN 50022-35 standard
  • IP2X ingress protection
  • Made in Italy by ReeR S.p.A.
General
Brand ReeR
Series SR
Electrical
Rated Current 6A
Supply Voltage 24VDC
Configuration
Contact Configuration 2NO+1NC
Switching Output Relay
Mechanical & Rating
IP Rating IP2X
Housing Type / Body Style DIN rail
Dimensions
Width 22.5mm
Height 99mm
Depth 114.5mm
