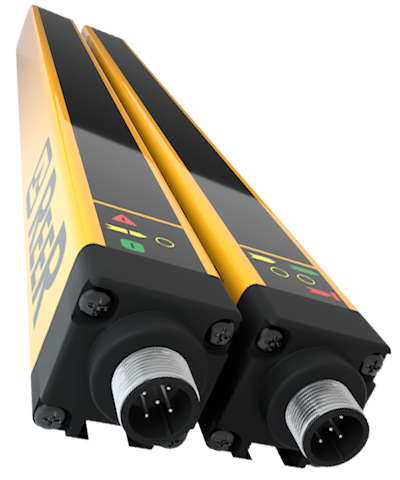

The EOS4 151 X from ReeR is a finger detection safety light curtain, rated to Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 with a maximum operating range of 6m.
- Controlled height of 150mm with 15 beams
- 14mm Resolution for finger detection
- Compact 28 x 30mm cross section for space-constrained installations
- 2 Fail-safe PNP (400mA at 24VDC) with protection against short circuit, overload and reverse polarity
- User-selectable automatic or manual restart mode
- 4ms Response time for fast detection
- Made in Italy by ReeR S.p.A.
General
Electrical
Configuration
Connection Type
M12 5-pole
Switching Output
Transistor PNP
Operating Mode
Manual/Auto
Detection Type
Finger
Communication & I/O
Resolution
14mm
Mechanical & Rating
Dimensions
CAD coming soon
We're working through documents across the range. Want this one sooner? Leave your email and we'll send it straight to you the moment it's ready.
