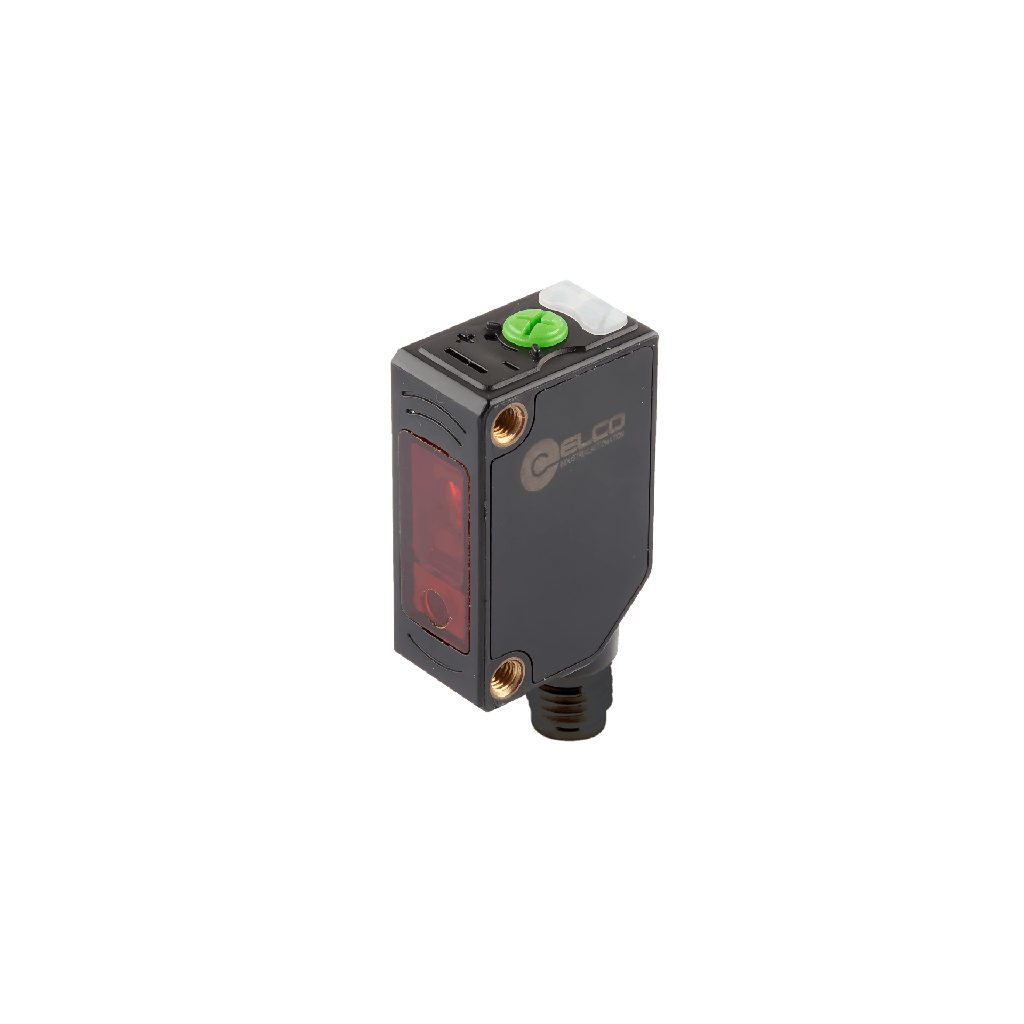

The OS10-ECP6Q8 from Elco Automation is a large-format photoelectric sensor in rectangular housing, providing detection at up to 30m.
- 30m operating range (Through-beam)
- Through-beam receiver — pair with a matching transmitter; signals detection when the incoming beam is interrupted
- PNP light or dark switching output on 10–30VDC supply
- 800Hz switching frequency — suits fast-response presence detection and part counting
- M8 plug, 4-pin connector for fast field termination and replacement
- Plastic (PA66) 32.8 × 12 × 20mm housing — corrosion-immune in damp or mildly aggressive environments
- IP67 protection and -25°C to +55°C operating range; CE, RoHS, REACH certified
