Square Safe Proximity Non-Flush-Mount
ReeR

Square Safe Proximity Non-Flush-Mount

Part No PI SQ NF
$ 914.53 $ 914.53 ex GST

  • Brand - ReeR
  • Rated Current
  • Supply Voltage
  • Sensor Type
  • Switching Output
  • IP Rating
  • Material
  • Width
  • Height
  • Depth
Trade account? Sign in for account pricing
Contact Us

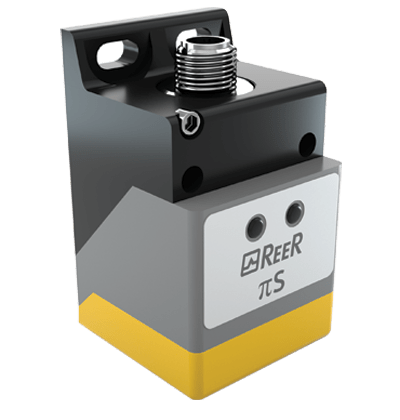

The PI SQ NF from ReeR is a Rectangular inductive non-contact safety sensor, rated to SIL 3 - PL e.

  • Safety rated to SIL 3 - PL e
  • Switching distance 4–20mm
  • 2 OSSD DC PNP (400mA at 24VDC)
  • IP65 - IP67 ingress protection
  • Diecast zinc body; PPE head housing
  • Operating temperature range -25°C to +70°C
  • Made in Italy by ReeR S.p.A.
General
Brand ReeR
Electrical
Rated Current 0.4A
Supply Voltage 24VDC
Configuration
Sensor Type Inductive
Switching Output Transistor PNP
Mechanical & Rating
IP Rating IP67
Material Diecast zinc body; PPE head
Dimensions
Width 40mm
Height 40mm
Depth 66mm

Datasheet coming soon
