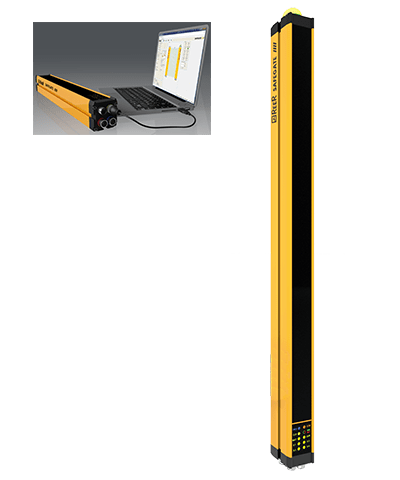

The SMPO 2B from ReeR is an access control detection safety light curtain with integrated muting, rated to Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 with a maximum operating range of 12m.
- Controlled height of 589mm with 2 beams
- Compact 50 x 55mm cross section for space-constrained installations
- 2 Fail-safe PNP (400mA at 24VDC) with protection against short circuit, overload and reverse polarity
- User-selectable automatic or manual restart mode
- 5.5ms Response time for fast detection
- M12 5-pole male connector (emitter), M12 12-pole male connector (receiver), M12 5-pole female connectors (Muting sensors) M12 5-pole female connector (programming and external Muting lamp)
- Made in Italy by ReeR S.p.A.
General
Brand
ReeR
Series
SAFEGATE SMPO
Electrical
Configuration
Connection Type
M12 5-pole
Switching Output
Transistor PNP
Operating Mode
Manual/Auto
Detection Type
Access control
Mechanical & Rating
Dimensions
