ReeR

Type 4 Hand Curtain W/Muting 610mm

Part No SMPO 603
$ 2,259.45 $ 2,259.45 ex GST

  • Brand - ReeR
  • Series
  • Rated Current
  • Supply Voltage
  • Connection Type
  • Switching Output
  • Operating Mode
  • Detection Type
  • Resolution
  • IP Rating
  • Housing Type / Body Style
  • Protected Height
  • Width
  • Height
  • Depth
Trade account? Sign in for account pricing
Contact Us

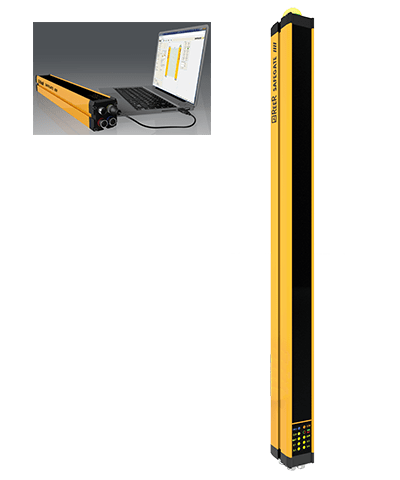

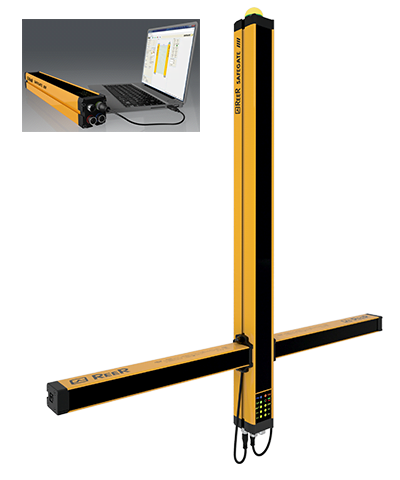

The SMPO 603 from ReeR is a hand detection safety light curtain with integrated muting, rated to Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 with a maximum operating range of 12m.

  • Controlled height of 600mm with 31 beams
  • 30mm Resolution for hand detection
  • Compact 50 x 55mm cross section for space-constrained installations
  • 2 Fail-safe PNP (400mA at 24VDC) with protection against short circuit, overload and reverse polarity
  • User-selectable automatic or manual restart mode
  • 11ms Response time for fast detection
  • Made in Italy by ReeR S.p.A.
General
Brand ReeR
Series SAFEGATE SMPO
Electrical
Rated Current 0.4A
Supply Voltage 24VDC
Configuration
Connection Type M12 5-pole
Switching Output Transistor PNP
Operating Mode Manual/Auto
Detection Type Hand
Communication & I/O
Resolution 30mm
Mechanical & Rating
IP Rating IP67
Housing Type / Body Style Back slot / Side slot
Protected Height 610mm
Dimensions
Width 50mm
Height 720mm
Depth 55mm
