VFD7A5MS21AFSAA

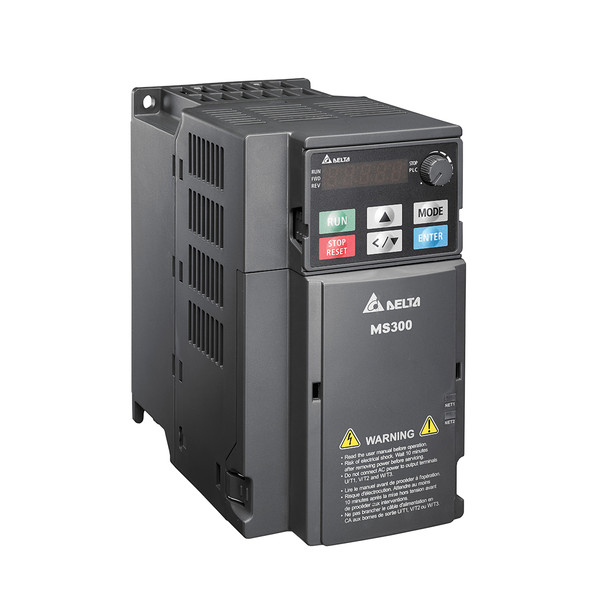

Variable Speed Drive MS300 1.5kW 240V 1ph/3ph C2 Filter IP20 Frame C

VFD7A5MS21AFSAA

In stock

MS300 Series Advanced Compact Vector DrivesThe Delta MS300 series combines compact design with enhanced motor control, built for both induction and permanent magnet motors. It features high starting torque (up to 200% at 0.5 Hz), a built-in PLC (2K steps), and STO (Safe Torque Off) certified to SIL2/PLd for safety-critical applications. The MS300 supports flexible I/O with multiple digital outputs and a removable 5-digit LED keypad, alongside USB connectivity for easy programming and data transfer.

Engineered for industrial versatility, it includes a built-in communication slot for optional fieldbus modules, and operates across single- and three-phase input ranges. With robust environmental protection (IEC 60721-3-3 class 3C2 coating), support for high-frequency signals up to 33kHz, and comprehensive motor protection, the MS300 is the ideal solution for OEMs and integrators needing performance, configurability, and long-term durability.

Excl. GST

ME300 series - Basic ultra-compact AC motor drives

The ME300 series focuses on essential functionality and a smaller footprint, making it ideal for OEMs and panel builders:


Ultra-compact design — up to 60% smaller than previous VFD models
High starting torque: up to 150% at 3 Hz
Supports PWM input up to 10 kHz
Simplified configuration with pre-set parameters
Multiple digital outputs: 1x relay, 1x transistor
Ideal for space-limited applications requiring efficient performance


MS300 series - Standard compact AC motor drives

The MS300 series is designed for more feature-rich industrial environments, offering enhanced capabilities for complex automation needs:


Built-in PLC functionality (2K steps) for simple programming
Optional communication slots for flexible integration
Safe Torque Off (STO) with SIL2 / PLd compliance for safety-critical applications
Higher starting torque: up to 200% at 0.5 Hz
Supports high-speed pulse input up to 33 kHz
USB port for simple PC uploads/downloads
Multiple digital outputs: 1x relay, 2x transistor


EL series multi-function micro AC motor drives

The Delta EL Series is a compact, multi-function micro AC motor drive designed for versatile control in small-to-medium motor applications. With open-loop control mode, built-in performance features, and optional communication models, the EL Series delivers reliable operation in a wide range of environments while saving valuable panel space.


Compact & Flexible Design — Supports side-by-side installation for efficient use of cabinet space
High-Efficiency Cooling — Ensures stable, reliable drive performance even in demanding conditions
Built-in PID Feedback Control — Enables precise process regulation without the need for external controllers
Integrated EMI Filter — Reduces electrical noise and enhances compatibility with sensitive equipment
Optional Fieldbus Models — Available on request for seamless integration into networked automation systems
User-Friendly Configuration — Pre-configured parameters make setup quick and simple
