ADXL0195600

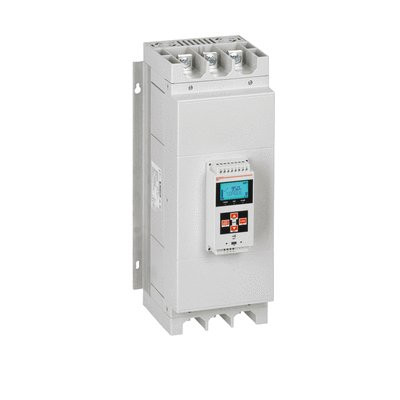

Soft Starter ADXL 195A (110kW), 208-600VAC with Internal By- Pass

ADXL0195600

In stock

ADXL series soft starters

The Lovato ADXL series soft starters offer advanced motor control with a compact design and intuitive configuration. Featuring two-phase control and torque management, they are suited for both simple and complex applications such as pumps, fans, conveyors, and mixers. The backlit LCD icon display and NFC connectivity enable quick setup and diagnostics via smartphone or tablet, while built-in application presets simplify commissioning for common use cases.

With operational voltages from 208 to 600 VAC and an auxiliary supply range of 100 to 240 VAC, the ADXL series supports voltage ramping, torque ramping, kick start, and optional current limiting. Real-time monitoring includes voltage, current, torque, power factor, and motor thermal status, while optional RS-485 communication enables integration into supervisory systems. An integrated optical port allows fast programming and data retrieval.

Excl. GST

ADXN series - Compact soft starters (two-phase control)

ADXN soft starters are a simple, compact (only 45 mm width) and fast-to-configure products for the gradual control of the starting and stopping of motors. The versatility makes it suitable for several applications for the control of pumps, fans, conveyor belts, compressors. Available with rated currents from 6 to 45A.


• Economical soft starters for motors up to 22 kW (400 VAC)
• Rated operational voltage: 208…600 VAC
• Integrated bypass relay disabling the thyristors once the starting ramp has concluded
• Ready to use - factory set configurations for quick and simple commissioning
• Suitable for IE3 premium efficiency motors


Integrated protection functions include: Soft starter thermal protection with integrated temperature sensor,
line frequency/voltage out of tolerance, line voltage not present, phase loss, incorrect phase sequence.

ADXL series - Soft starters (two-phase control)

ADXL series soft starters feature a backlit LCD icon display and NFC connectivity for convenient configuration, accessible even from smartphones and tablets. Ideal for both straightforward "plug and play" setups and demanding applications requiring precise control and protection during motor startup and operation.


Incorporating two-phase control during motor starting and stopping torque control during operation.
General features:
• Auxiliary supply: 100...240 VAC • Rated operational voltage: 208...600 VAC
• Programming, data download and diagnostics via incorporated optical port with CX01/02
• Voltage ramp startup, torque ramp, kick start, with or without current limit
• Selectable default application: Centrifugal pump, fire pump, conveyor belt, fan, mixer and general purpose
• Optional RS-485 communication with EXC1042
• Indicating: - Voltage - current L1/L2/L3 - torque - active power - PF - motor thermal status
- Soft starter temperature - active energy - motor hour counter - startup counte

ADXT... series - Advanced heavy-duty soft starters (three-phase control)

ADXT... soft starters for applications requiring high performance, reliability and robustness. Mainly used for control of heavy loads due to high torque availability during starting, overcoming the inertia of
applications such as crushers, fans, vertical/inclined conveyors, screw compressors etc.


The integrated or internal bypass contactor disabling the thyristors once motor starting is completed,
reducing energy consumption, generated heating and power dissipation.
• Auxiliary supply voltage 110...120 / 220...240 VAC
• Rated operational voltage 380...690 VAC


Advanced features:
- Various motor starting modes / Emergency mode: Running of the motor ignoring alarms
- Power Through function: allow starting with a damaged thyristor (2-phase control)
- Scheduled start: timer & clock modes, based on ADXT RTC
- Control of breaking/reversing contactors


ADXT soft starters can be installed with traditional in-line connection or inside delta connection
(six-wire connection) with thyristors connected in series to each motor winding. In this configuration, requiring
six-wire motors, the soft starter is only crossed by the phase current, which is significantly lower than the line current.


This permits the use of a smaller starter, resulting in cost savings, and simplifies the replacement
of star-delta starters since the existing wiring is retained
