ADXNB02524

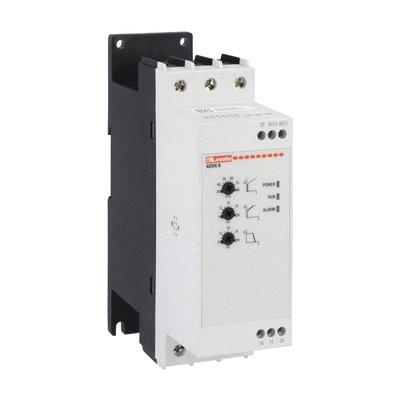

Soft Starter 25A (11kW), 415VAC with Internal By- Pass, 24VAC/DC Control

ADXNB02524

In stock

ADXNB series soft starters – Basic version

The ADXNB series from Lovato provides a straightforward and cost-effective soft starting solution for standard motor control applications. Designed for simplicity and ease of use, these starters are configured using only three front panel potentiometers, enabling fast setup without specialized tools or software.

Key adjustable parameters include initial voltage step (30–80% of line voltage), acceleration ramp time (1–20 seconds), and deceleration ramp time (0–20 seconds). With external overload protection required, the ADXNB is ideal for motors in pumps, fans, conveyors, and compressors where basic ramping and deceleration are sufficient. Its minimal design ensures ease of installation and high adaptability across varied systems.

Excl. GST

ADXN series - Compact soft starters (two-phase control)

ADXN soft starters are a simple, compact (only 45 mm width) and fast-to-configure products for the gradual control of the starting and stopping of motors. The versatility makes it suitable for several applications for the control of pumps, fans, conveyor belts, compressors. Available with rated currents from 6 to 45A.


• Economical soft starters for motors up to 22 kW (400 VAC)
• Rated operational voltage: 208…600 VAC
• Integrated bypass relay disabling the thyristors once the starting ramp has concluded
• Ready to use - factory set configurations for quick and simple commissioning
• Suitable for IE3 premium efficiency motors


Integrated protection functions include: Soft starter thermal protection with integrated temperature sensor,
line frequency/voltage out of tolerance, line voltage not present, phase loss, incorrect phase sequence.

ADXL series - Soft starters (two-phase control)

ADXL series soft starters feature a backlit LCD icon display and NFC connectivity for convenient configuration, accessible even from smartphones and tablets. Ideal for both straightforward "plug and play" setups and demanding applications requiring precise control and protection during motor startup and operation.


Incorporating two-phase control during motor starting and stopping torque control during operation.
General features:
• Auxiliary supply: 100...240 VAC • Rated operational voltage: 208...600 VAC
• Programming, data download and diagnostics via incorporated optical port with CX01/02
• Voltage ramp startup, torque ramp, kick start, with or without current limit
• Selectable default application: Centrifugal pump, fire pump, conveyor belt, fan, mixer and general purpose
• Optional RS-485 communication with EXC1042
• Indicating: - Voltage - current L1/L2/L3 - torque - active power - PF - motor thermal status
- Soft starter temperature - active energy - motor hour counter - startup counte

ADXT... series - Advanced heavy-duty soft starters (three-phase control)

ADXT... soft starters for applications requiring high performance, reliability and robustness. Mainly used for control of heavy loads due to high torque availability during starting, overcoming the inertia of
applications such as crushers, fans, vertical/inclined conveyors, screw compressors etc.


The integrated or internal bypass contactor disabling the thyristors once motor starting is completed,
reducing energy consumption, generated heating and power dissipation.
• Auxiliary supply voltage 110...120 / 220...240 VAC
• Rated operational voltage 380...690 VAC


Advanced features:
- Various motor starting modes / Emergency mode: Running of the motor ignoring alarms
- Power Through function: allow starting with a damaged thyristor (2-phase control)
- Scheduled start: timer & clock modes, based on ADXT RTC
- Control of breaking/reversing contactors


ADXT soft starters can be installed with traditional in-line connection or inside delta connection
(six-wire connection) with thyristors connected in series to each motor winding. In this configuration, requiring
six-wire motors, the soft starter is only crossed by the phase current, which is significantly lower than the line current.


This permits the use of a smaller starter, resulting in cost savings, and simplifies the replacement
of star-delta starters since the existing wiring is retained
