Name: B400STR024B/A
Brand: E2S
SKU: B400STR024B/A
Price: 1137.33 AUD
Availability: InStock

B400STR024B/A

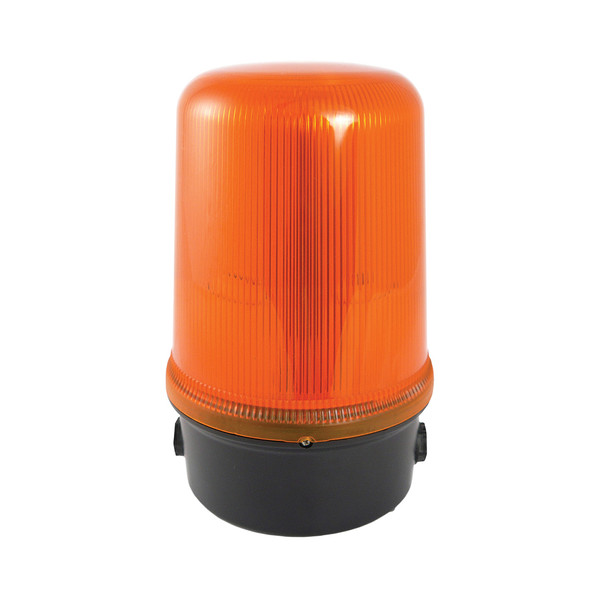

Beacon Xenon B400STR 15J 24VAC/DC Amber

B400STR024B/A

In stock

B400STR024B/A (amber, 24VAC/DC) - features:

$1,137.33

Excl. GST (Excl. GST)

Current Consumption
Light source	Xenon Strobe
Energy	15 Joules (15Ws)
Flash rate	1Hz (60 fpm)
Synchronisation	1Hz flash rate automatically synchronised
Peak Candela	94,790 cd* – measured ref. to I.E.S.
Effective Intensity cd	500 cd* – measured ref. to I.E.S.
Lens colours	Amber, Blue, Clear, Green, / Red & Yellow
Lens type	Prismatic (standard) or plain
Mounting	Surface mount / (right angle or pole mount accessories available)
Entries	1 × 5-7mm push through grommet / 2 x M20 cable entry
Dimensions	ø140 x 220mm
Ingress protection	IP65
Housing material	High impact UL94 V0 (f1) PC
Lens material	High impact UL94 V0 (f1) PC
Terminals	1.5 mm² flying lead assembly
Operating temp	-25 to +50°C [-13° to +122°F]
Storage temp	-40 to +70°C [-40° to +158°F]
Relative humidity	90% at 20°C [68°F]
Weight	535g/1.17Ibs
24VDC/ac	870mA
48VDC/ac	480mA
115VAC 50/60Hz	400mA
230VAC 50/60Hz	225mA

B400STR024B/A
