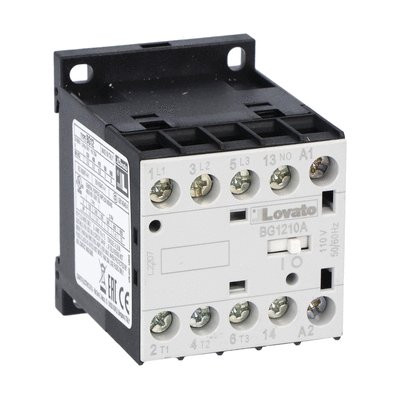

BG1210A048

5.5KW 3P MINI CONT. 1NO 48VAC

BG1210A048

Out of stock

BG series mini contactors. The main feature of the BG mini contactor is the compact size so its main use is in applications where the electric circuit is compressed because of the available space, for instance on small machine tools, air conditioning, automatic doors or gates, lighting etc.

Use in more complex industrial circuitry is also possible for small control loads. These mini contactors can be equipped with accessories or thermal overload relays as well as connected with motor protection circuit breakers.

Product Variants

Excl. GST

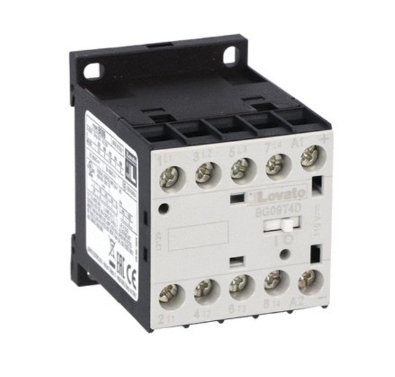

Mini Contactors

The Lovato BG mini-contactor range delivers both AC and DC control in one compact size, with easy snap-on accessories and clear status indication. Versatile mounting options and reliable performance make these contactors ideal for tight spaces and demanding industrial applications.


● Three-pole mini-contactors, 6 to 12A IEC AC3 duty
● Four-pole mini-contactors, 20A IEC AC1 duty
● Up to four auxiliary contacts can be mounted
● Mechanical interlock only 5mm depth
● Types with 2NO+2NC or 4NC main power poles
● Control relays/Thermal overloads available

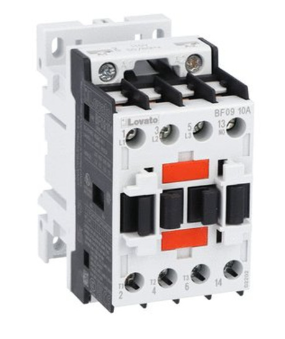

Contactors

Lovato contactors are designed for maximum flexibility and ease of use, featuring quick-connect mounting, clear status indication, and a robust range of options for any control application. With high auxiliary contact capacity, mechanical interlocks that don’t add bulk, and specialized models for safety, power factor correction, and solar installations, these contactors provide reliable performance across industrial environments.


● Three and four contactors, up to 630A IEC AC3 duty
● Quick connect – snap on accessory mounting
● Up to 12 auxiliary contacts can be mounted
● Mechanical interlock without overall dimensions increasing
● Types with 2NO+2NC or 4NC main power poles
● Low-consumption versions for control relays and 9–38A contactors in IEC AC3 duty

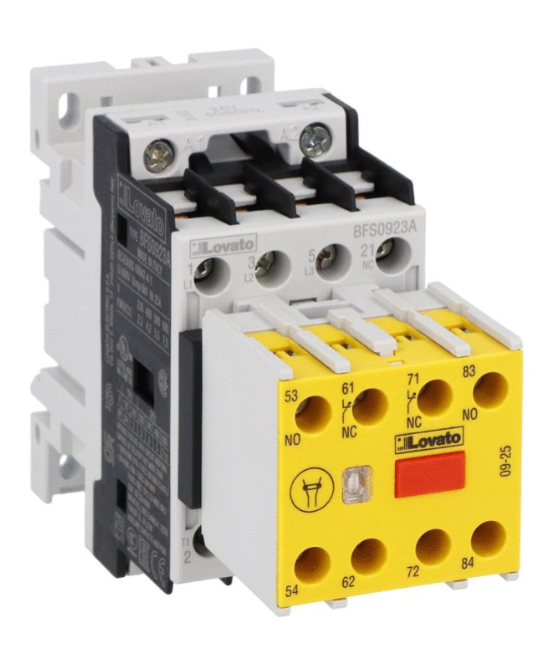

Safety Contactors

The BFS series safety contactors are purpose-built for environments where safety cannot be compromised. With integrated fail-safe and redundancy mechanisms, these contactors deliver reliable, tamper-proof protection for operators and equipment, making them essential for emergency stop and fault-disconnection applications in automation, robotics, and process control.


● Non-removable auxiliary contact blocks to prevent tampering
● Manual operation or operation using tools is impossible, preventing tampering during operation
● Certifications: ISO 13849-1 and IEC/EN 62061 for safety of machinery and functional safety
● Mirror contact function: NC auxiliary cannot close if the NO main contact is closed, even in fault conditions
● Mechanically linked contacts: NO and NC auxiliary contacts cannot close at the same time, even in case of welding
