Name: DRP024V120W3BN
Brand: Delta
SKU: DRP024V120W3BN
Price: 154.8 AUD
Availability: InStock

DRP024V120W3BN

CliQ II PSU 5A 120W 3ph 320-575VAC/24VDC

DRP024V120W3BN

In stock

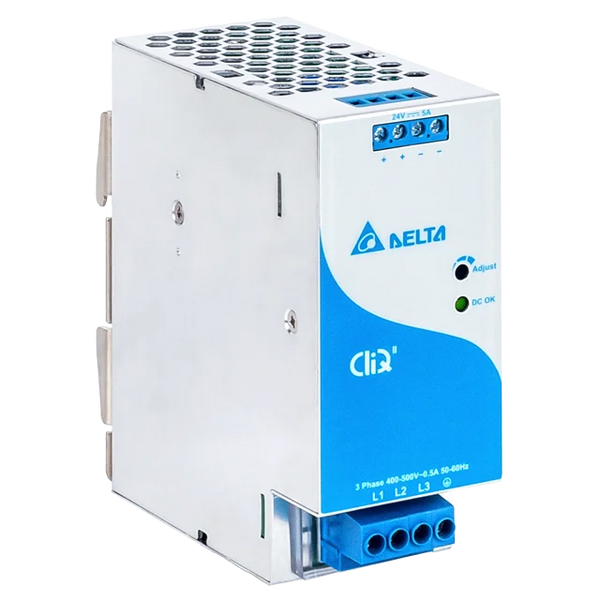

The DRP024V120W3BN from Delta Electronics is a 24V 120W 5A DIN-rail-mounted switching power supply from the CliQ II Series, designed for industrial control cabinets and machine wiring.

Regulated DC output delivering 24V at 5A for 120W total power
Universal AC input accepts 3 x 320–600VAC at 47-63Hz for global deployment
Output voltage adjustable 24–28VDC via front-panel trim
Typical efficiency > 88% @ 3 x 400Vac & 3 x 500Vac
Rated for ambient operating temperature -25°C to +80°C (Cold Start at -40°C)
Ingress protection IP20
Typical efficiency 88.0% at full load

$154.80

Excl. GST (Excl. GST)

Details
Specifications
Shipping
Downloads

CAD View / Download
Certifications View / Download
Datasheet View / Download
Instruction Manual View / Download

Power Supply Type	DIN Rail Switching PSU
Input Voltage Range	3 x 320–600VAC
Input Frequency	47-63Hz
Output Voltage	24V
Output Current	5A
Output Power	120W
Output Adjustment Range	24–28VDC
Line Regulation	< 0.5% (@ 3 x 320-600VAC input, 100% load)
Load Regulation	< 1% (@ 3 x 320-600VAC input, 0-100% load)
Operating Temperature	-25°C to +80°C (Cold Start at -40°C)
Operating Humidity	5 to 95% RH (Non-Condensing)
Input Terminal	4 Pins (Rated 600V/35A)
Output Terminal	4 Pins (Rated 300V/28A)
Ingress Protection	IP20
Certifications	SIQ Bauart: EN 62368-1 UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395) CB scheme: IEC 60950-1, IEC 62368-1 BIS: IS 13252-1 UKCA: BS EN 62368-1
MTBF	> 800,000 hrs. as per Telcordia SR-332 (I/P: 3 x 400VAC, O/P: 100% load, Ta: 25°C)
Dimensions (L×W×H)	121 x 50 x 117.3mm
Weight	0.66kg (1.46lb)
Manufacturer	Delta Electronics
